Electronic Locks

|

ADVANCE Trillium RFID

Brilliantly designed yet simple to use

Protect both your property and your guests while keeping today’s ease of use top of mind

Advanced Credential Security

Trillium RFID locks iclude the MIFARE® Plus Technology option with enhanced credential security for RFID cards. Trillium locks are also available with DirectKey™ module option, enabling a proven mobile key solution

Easy Upgrade Path

ADVANCE Trillium RFID locks provide an easy upgrade path where Onity ADVANCE ones are currently installed, no new door cuts or repainting are required. Properties with ADVANCE locks can update to ADVANCE Trillium RFID by installing a new reader and control board.

Electronic Features

  • Reading technology: contactless RFID
  • Multiple opening devices available: cards, wristbands, keychains, etc.
  • Non-volatile memory: records last 500 openings including date, time and card user
  • Programmable to customer needs (“Office Mode”, free passage, etc.)
  • LEDs indicate lock status including low battery
  • Programmable for length of time door remains open and automatic closing
  • Each new guest card overrides any previous ones preventing re-entry
  • Masterkeying available

Physical Features

Off-line installation (no wires required)
“Do-Not-Disturb” Function (thumbturn)
Corrosion resistant
Attractive cover plates are available for retrofit projects
Handles: Wing, Granada, Jerez, Barcelona, Toledo and Sevilla

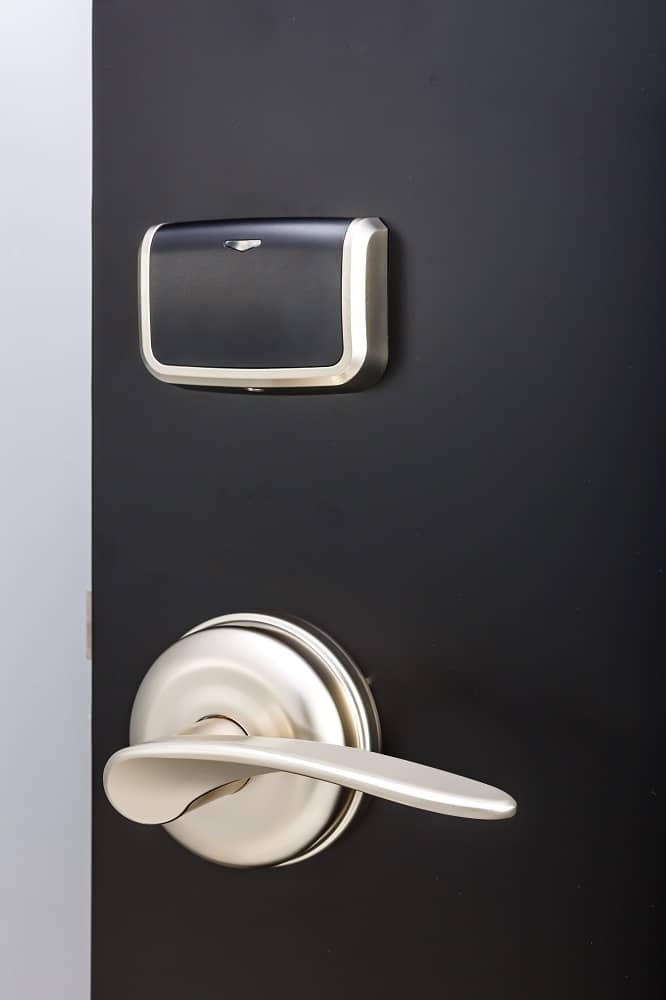

Satin Nickel

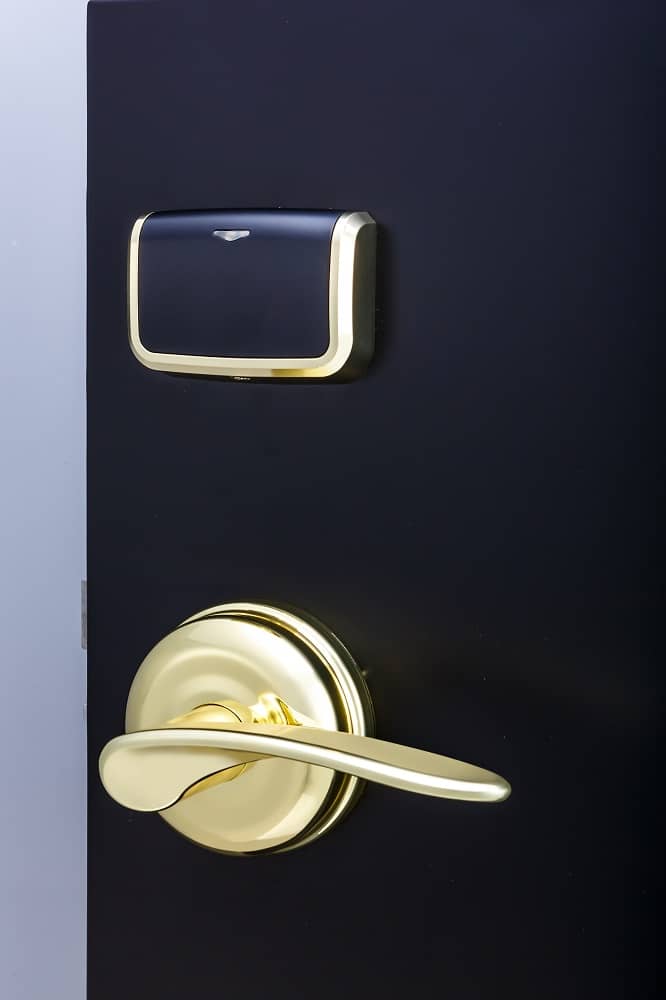

Polished Brass

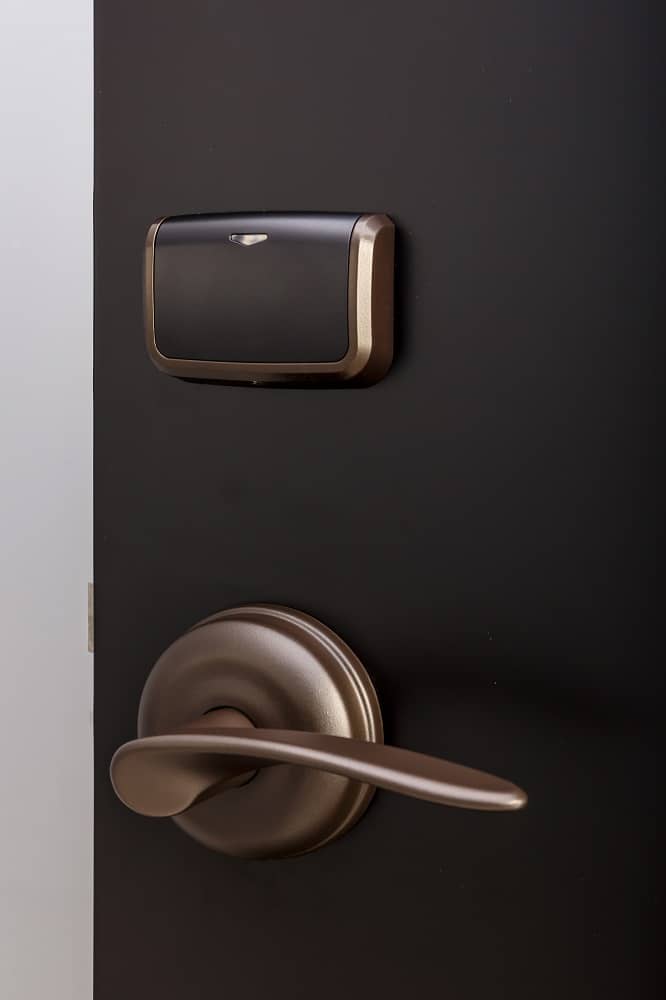

Dark Bronze

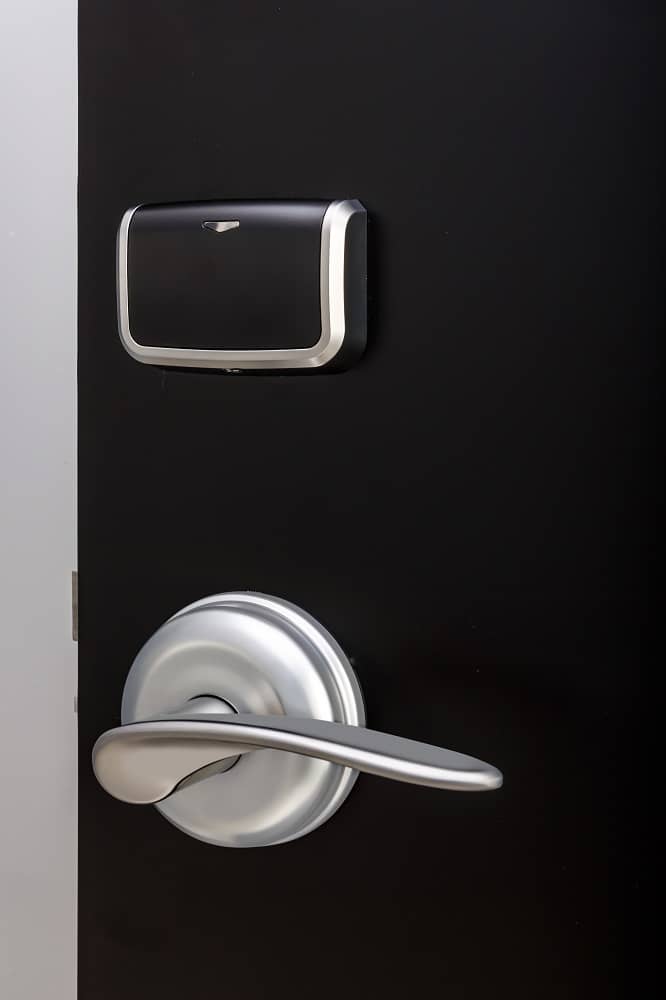

Satin Chrome

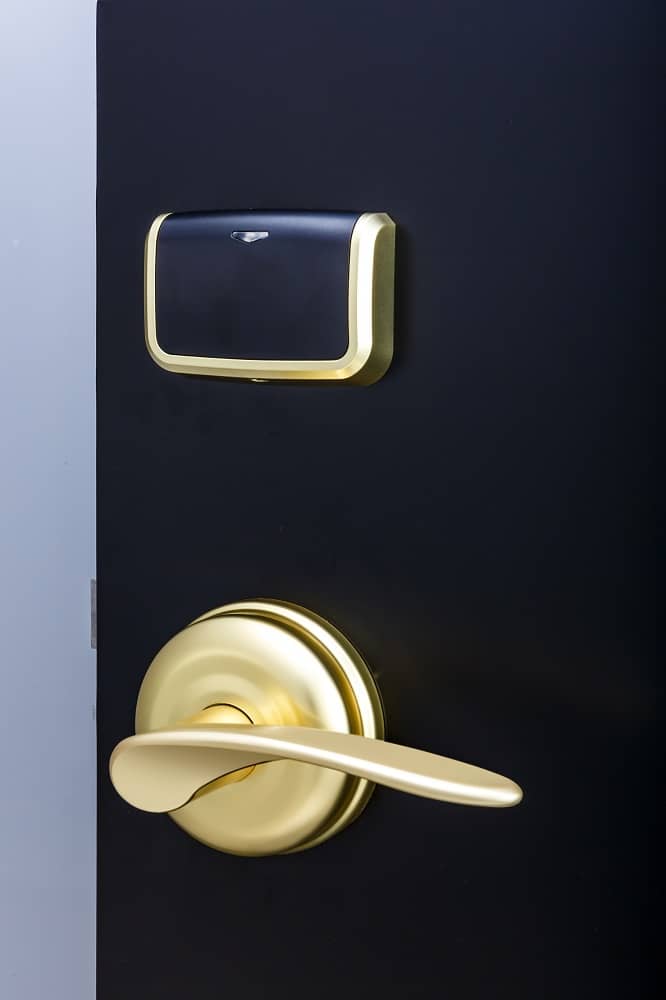

Satin Brass

Additional finishes

Antique Brass

Polished Chrome

Matt Black

Specifications

Temperature ranges
Alkaline batteries -18ºC to 55ºC
Humidity up to 95% non-condensing
Power supply 4 alkaline AA batteries (included), with 2 years life approx

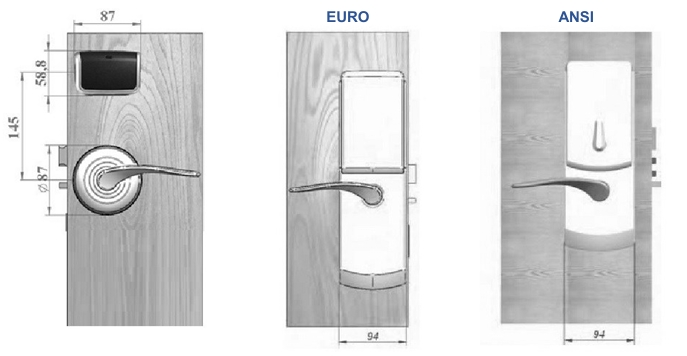

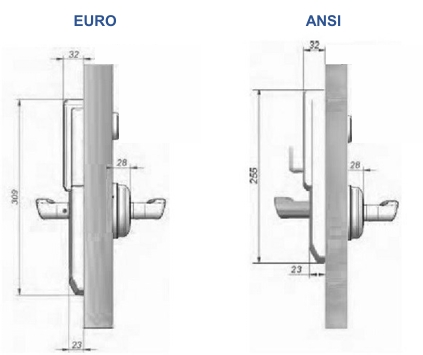

Dimensions

Choose from a variety of access credentials

Direct key

RFID keycard

Keyfob

Wristband
