Electronic
Locks
Beautifully designed,
inside & out
Serene, from Onity, is a sleek all-in-one lock designed for luxury hotels. Its small glowing halo of light symbolizes both timeless design and leading-edge DirectKey mobile access technology that allows guests to unlock their room with ease as they approach the door.

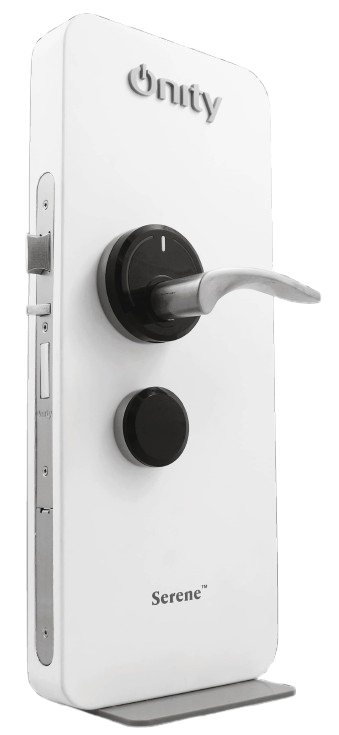

Serene
With a design that minimizes on-the-door hardware, Serene locks are available with a range of handles and finishes, allowing for ultimate design flexibility and customization for each property.
Customize your look

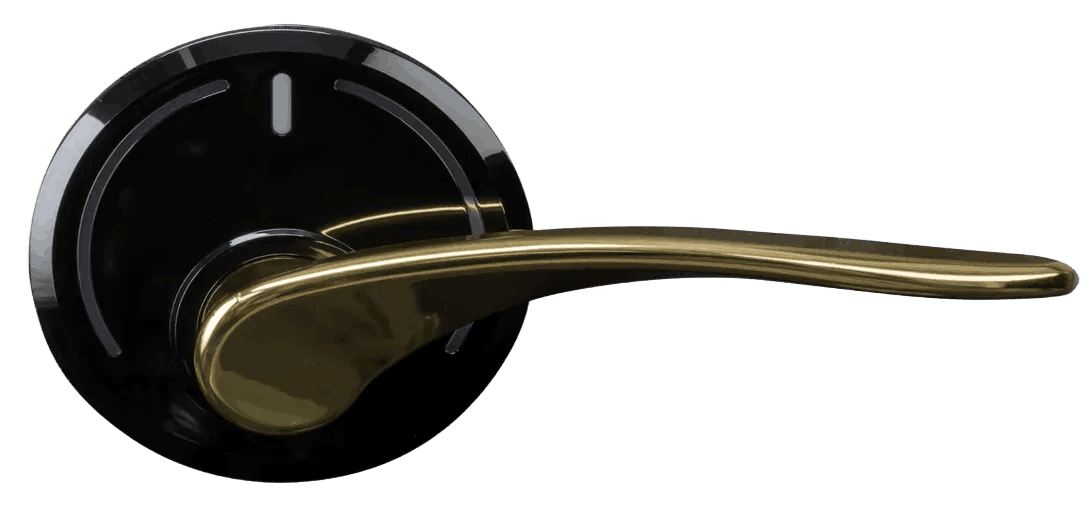

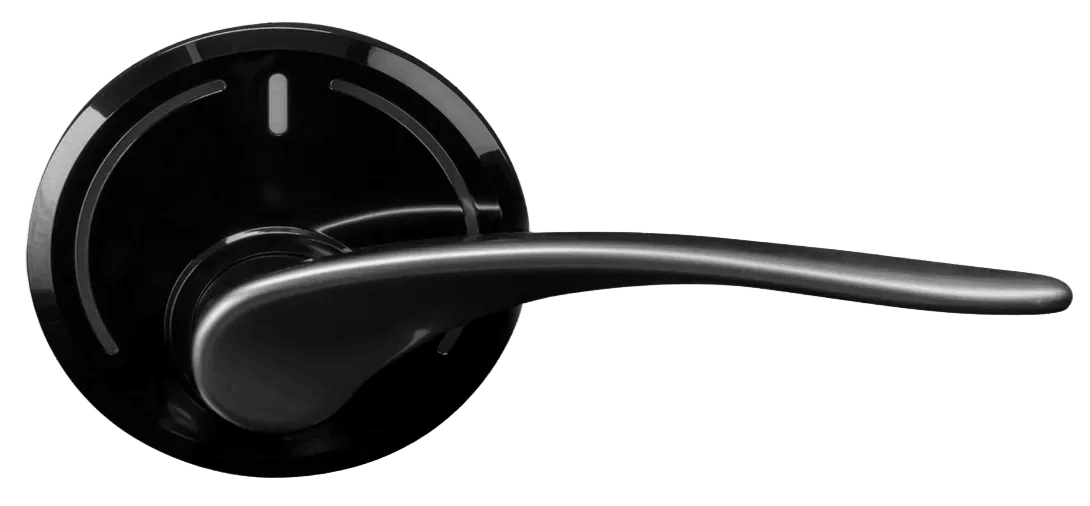

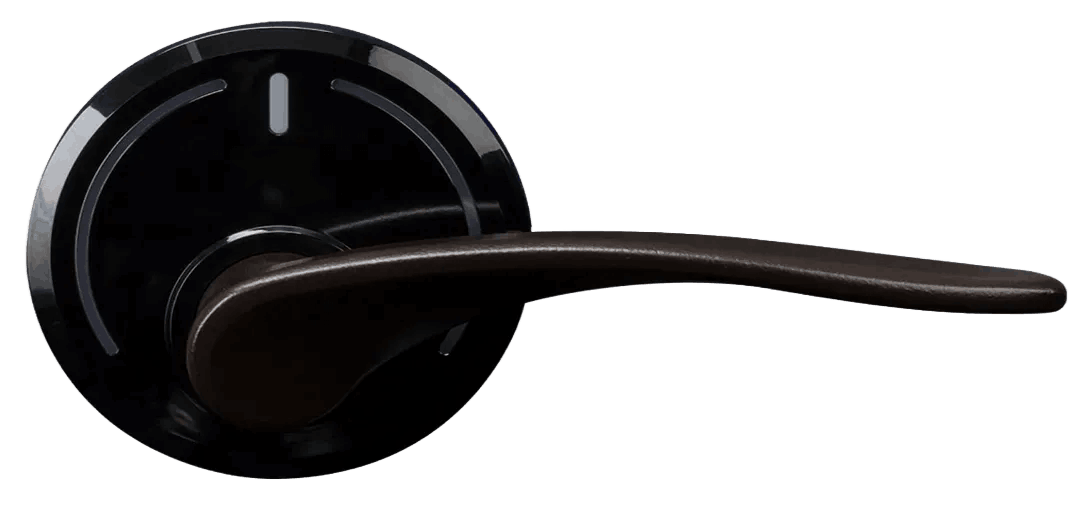

Wing

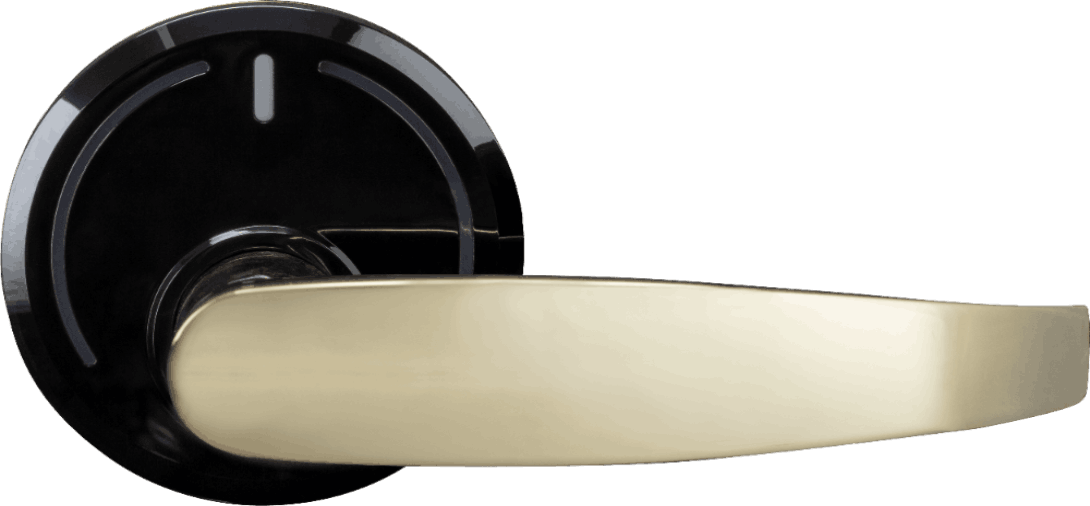

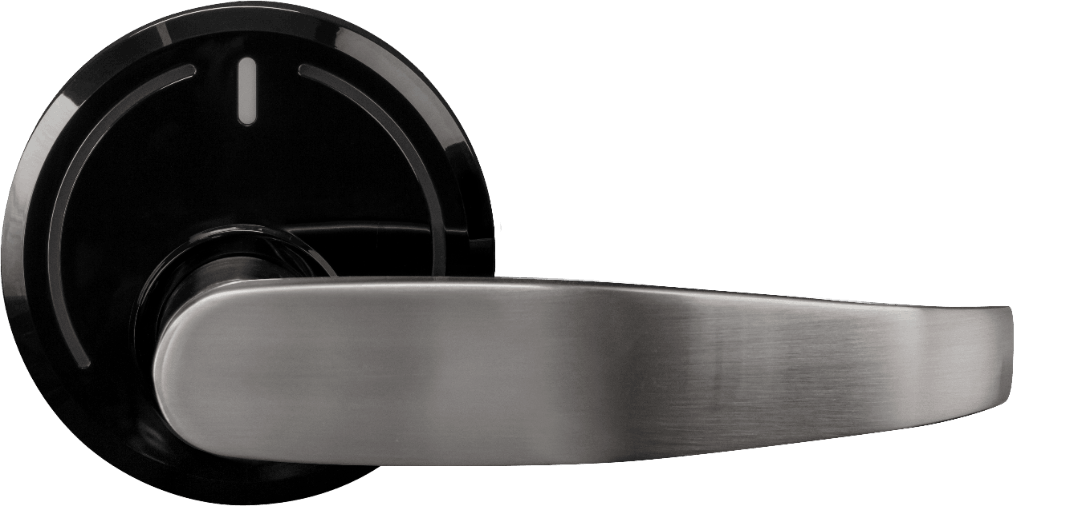

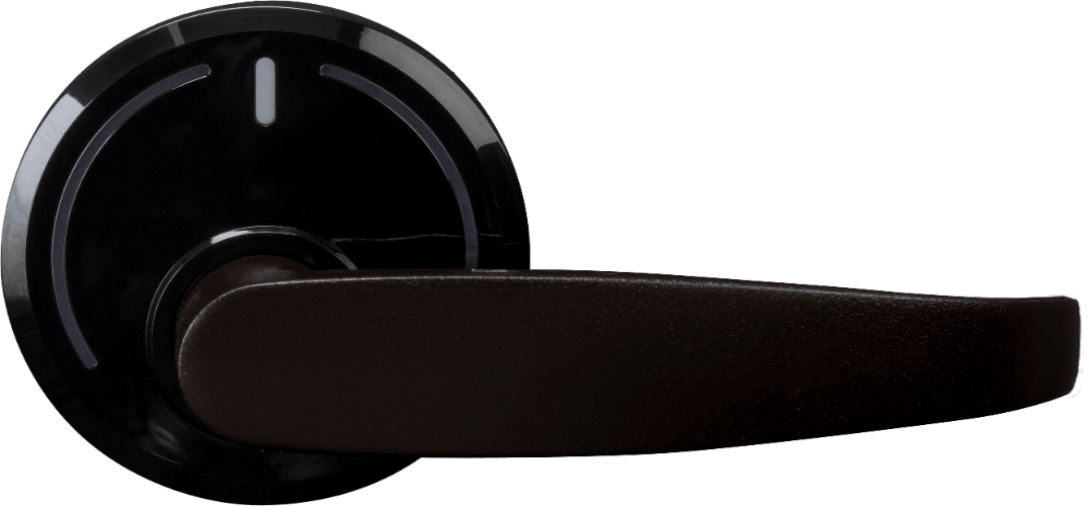

Granada

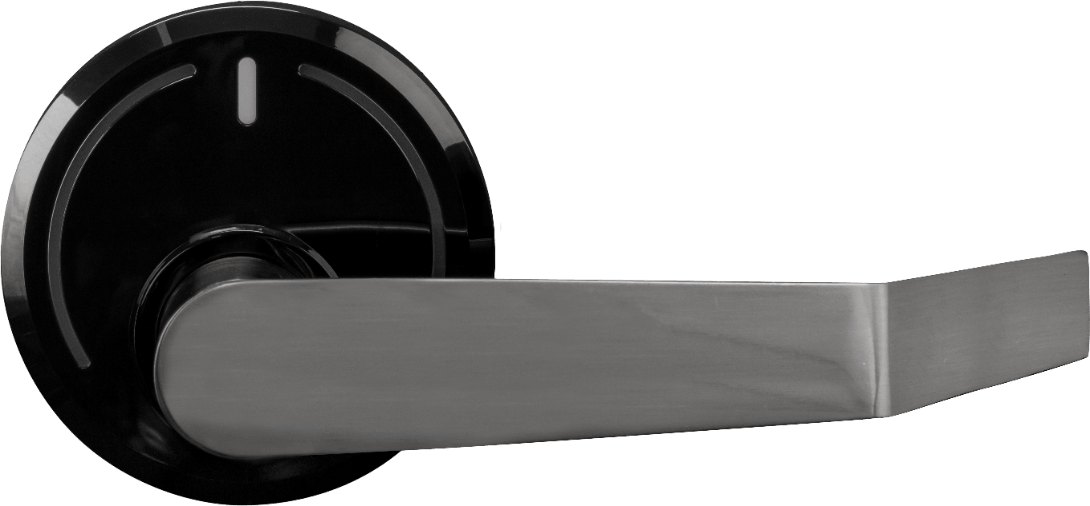

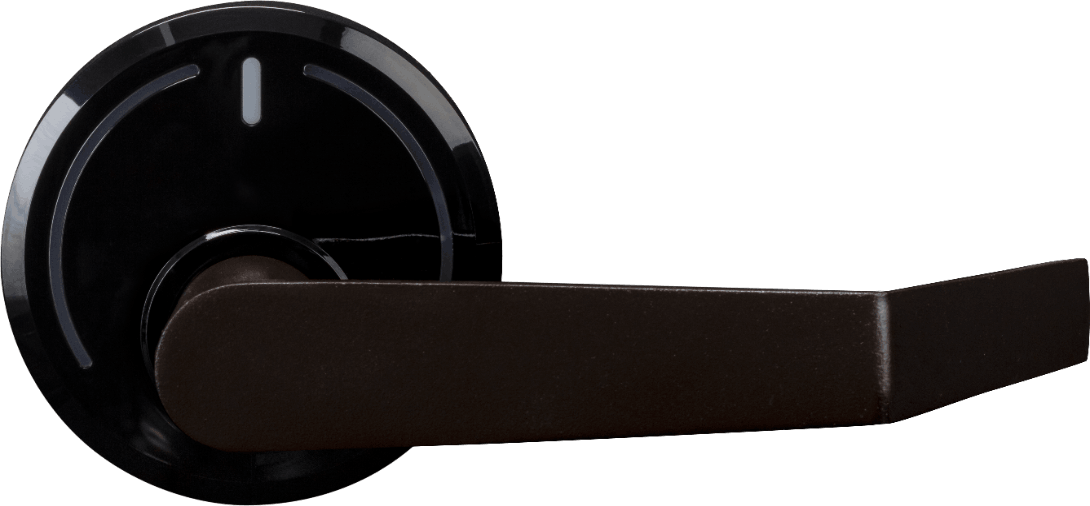

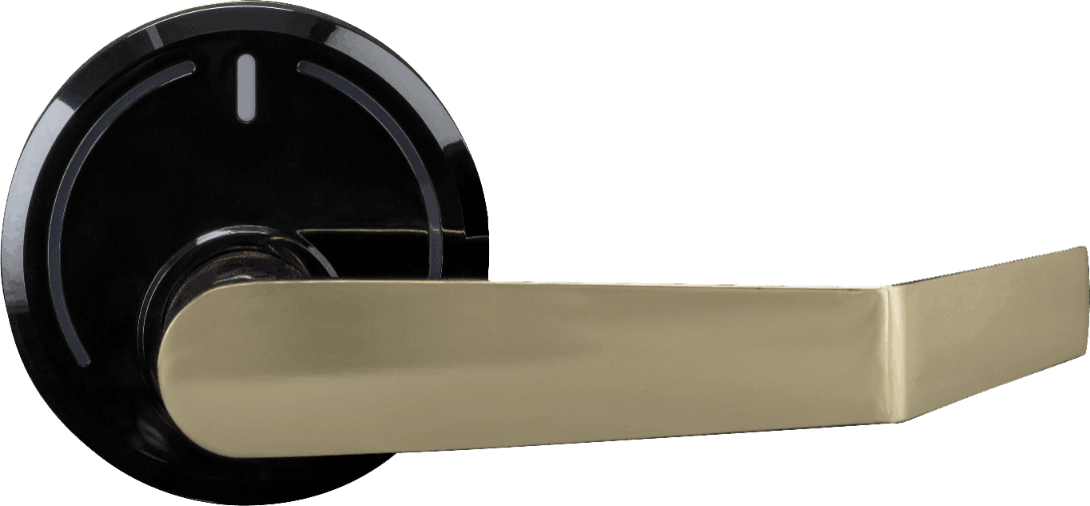

Toledo
Additional finishes
Antique Brass
Black Chrome
Polished Brass
Polished Chrome
Satin Chrome
Additional handle options
If our current line of levers isn’t quite what you’re looking for, Serene locks are compatible with a range of alternate handles.
Serene supports designer levers with 8mm square interface
Choose from a variety of access credentials
Direct key
RFID keycard
Keyfob
Wristband
Features
- Soft LED light halo indicates the status of the lock to provide a visual indicator to hotel guests
- Ideal for new construction
- Suits a wide range of designs with finish and lever options
- Upgradable lock firmware
- Lock programming and audit records retained during battery replacement
- Supported by OnPortal™ lock management system
- Supports RFID and Bluetooth® communications

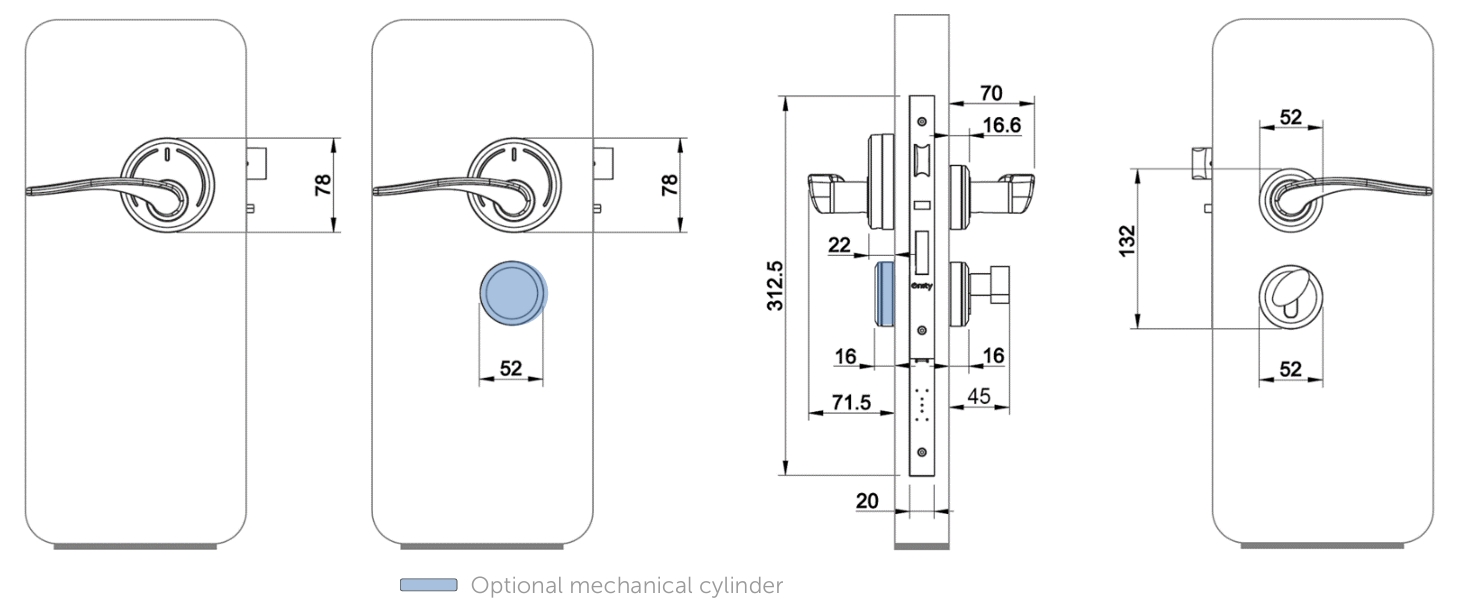

Technical Description

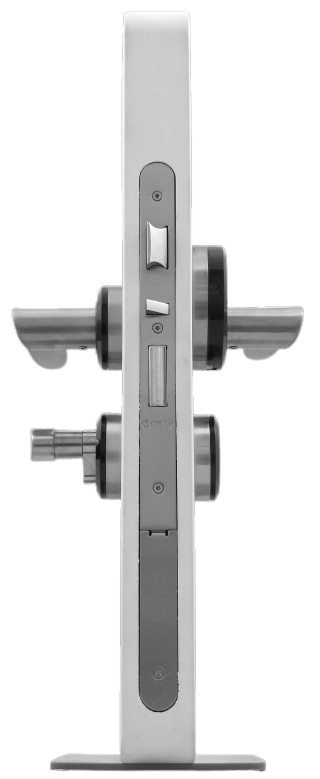

| Mortise lock | EURO / ANSI |
|---|---|
| Door Thickness | 35 - 95 mm / 40-55 mm |
| BLE Enabled for Mobile Access | BLE 5 module included, no further upgrade required |
| Supported RFID Standards | ISO 14443 A (MIFARE Plus® and Ultralight C) |
| User Interface | Multi colored light pipe around reader indicates lock status and communication |
| Panic Release | Function: Inside lever automatically retracts the deadbolt and latch in emergency situations |
| Audit Log | Stores last 3000 events |
| Online Compatibility | RMS future capable, firmware update required |
| ADA Compliant | |
| Upgradeable Firmware | |
| Power supply | 1.5 VDC (4x AA alkaline batteries) |
|---|---|
| Battery life | 2 years normal life |
| Battery location | Inside of the door in electronics module |
| Lock programming and audit records retained during battery replacement | |
| Operating Temperature | -25 to +70 C |
|---|---|
| Storage Temperature | -40 to +85 C |
| Humidity | +60C / 95% RH |

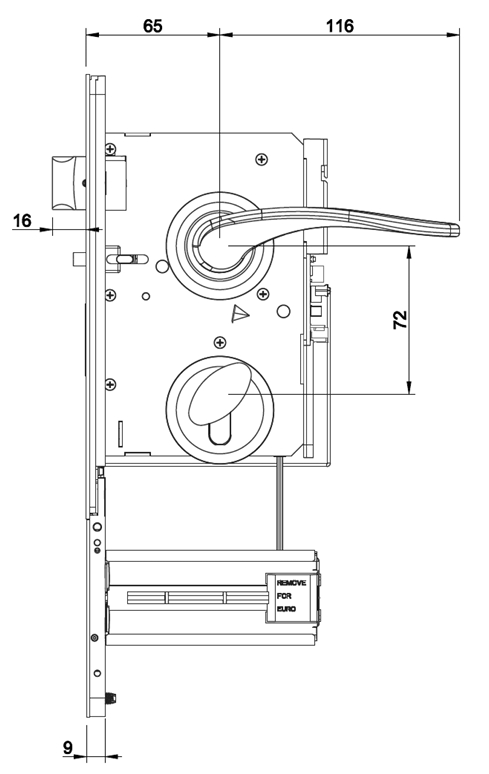

| Backset | 65 mm |
|---|---|
| Faceplate | 20 or 24 mm, rounded or square |
| Offset | 72 mm |

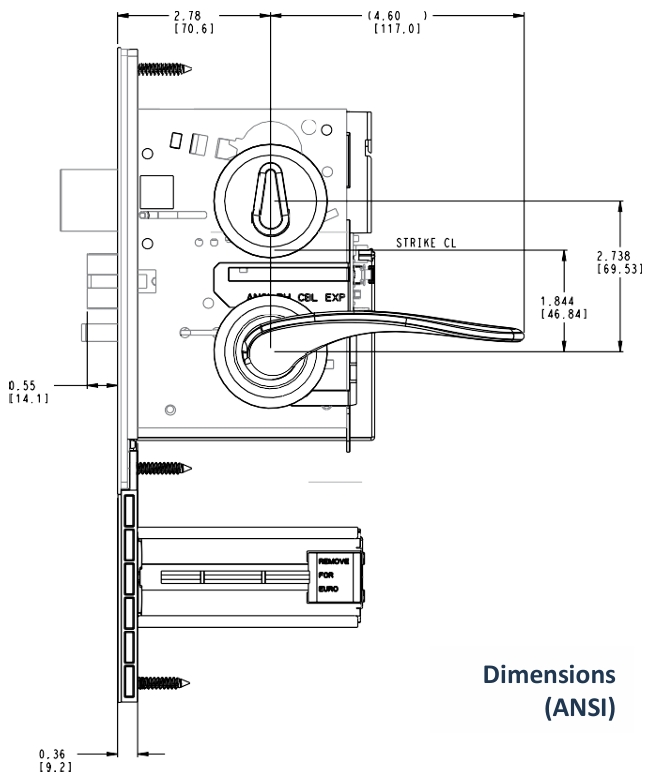

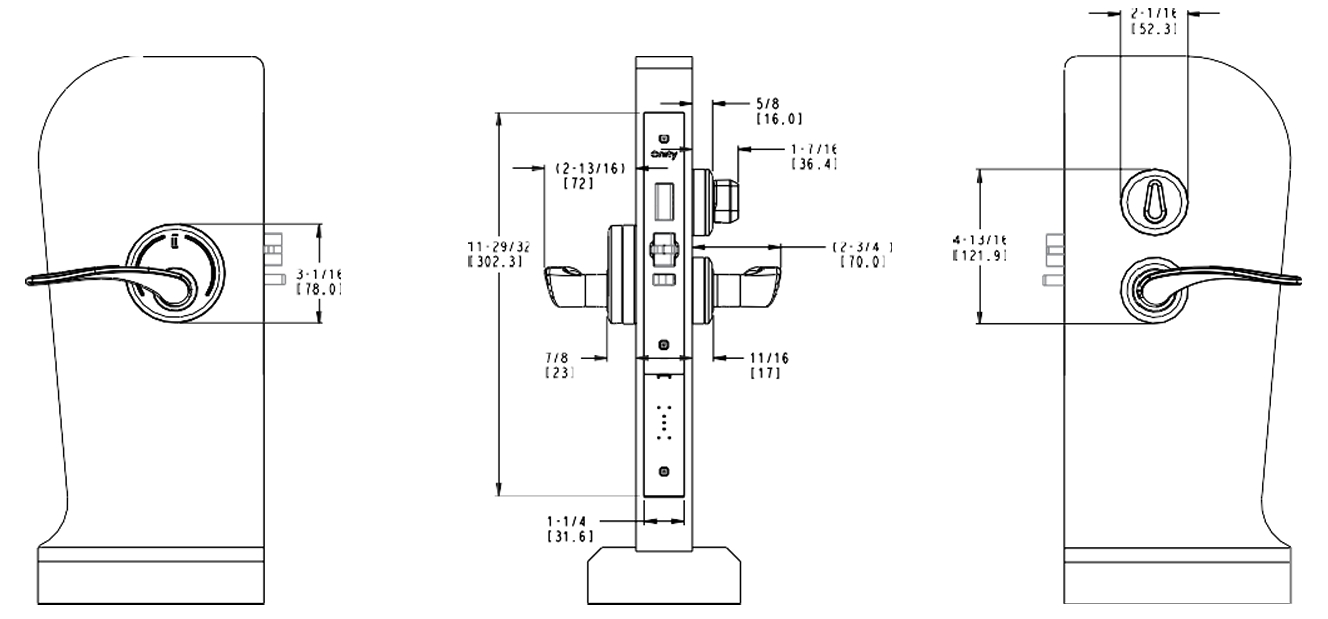

| ANSI backset | 70 mm |
|---|---|
| ANSI lock case widths | 1″ lock front mortise |
| ANSI lock case variants | ANSI std, ANSI LO, ANSI ADB future release |
