Electronic Locks
Special locks
Created to accommodate small-to-large-sized properties. The Trillium lock range is available with 2 reading technologies: Magstripe Lock Reader, RFID Lock Reader.
Trillium Range

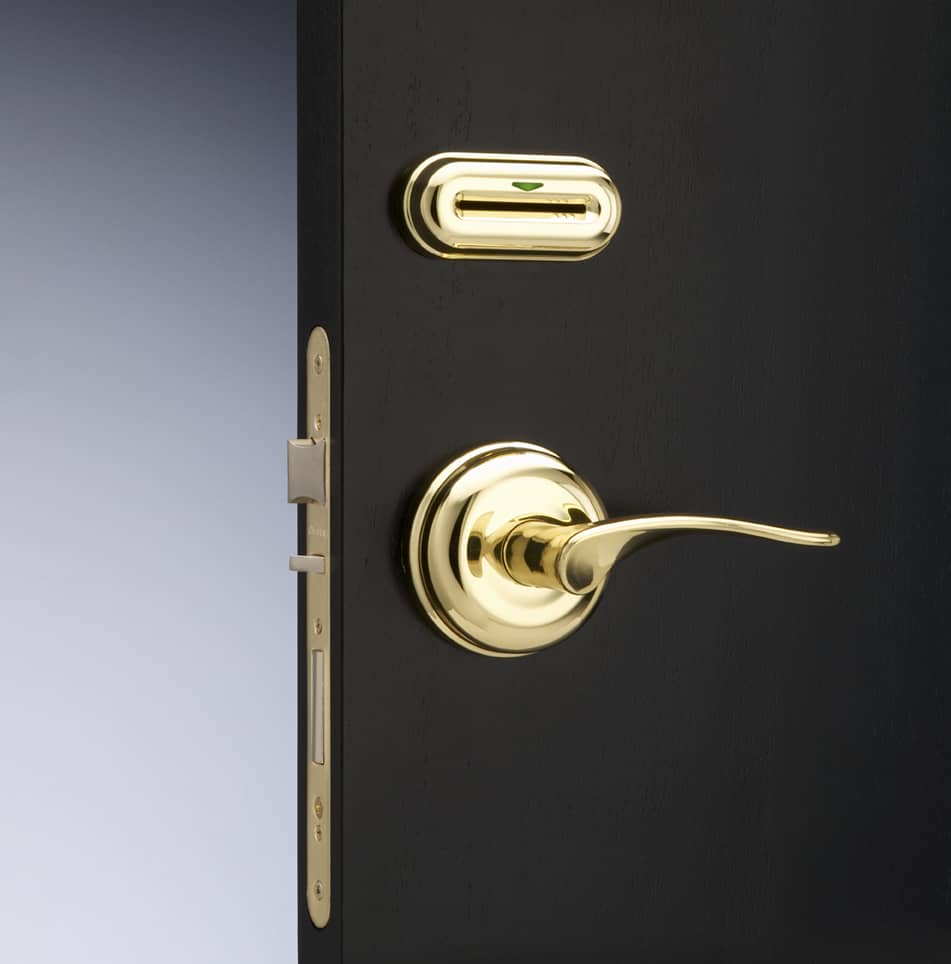

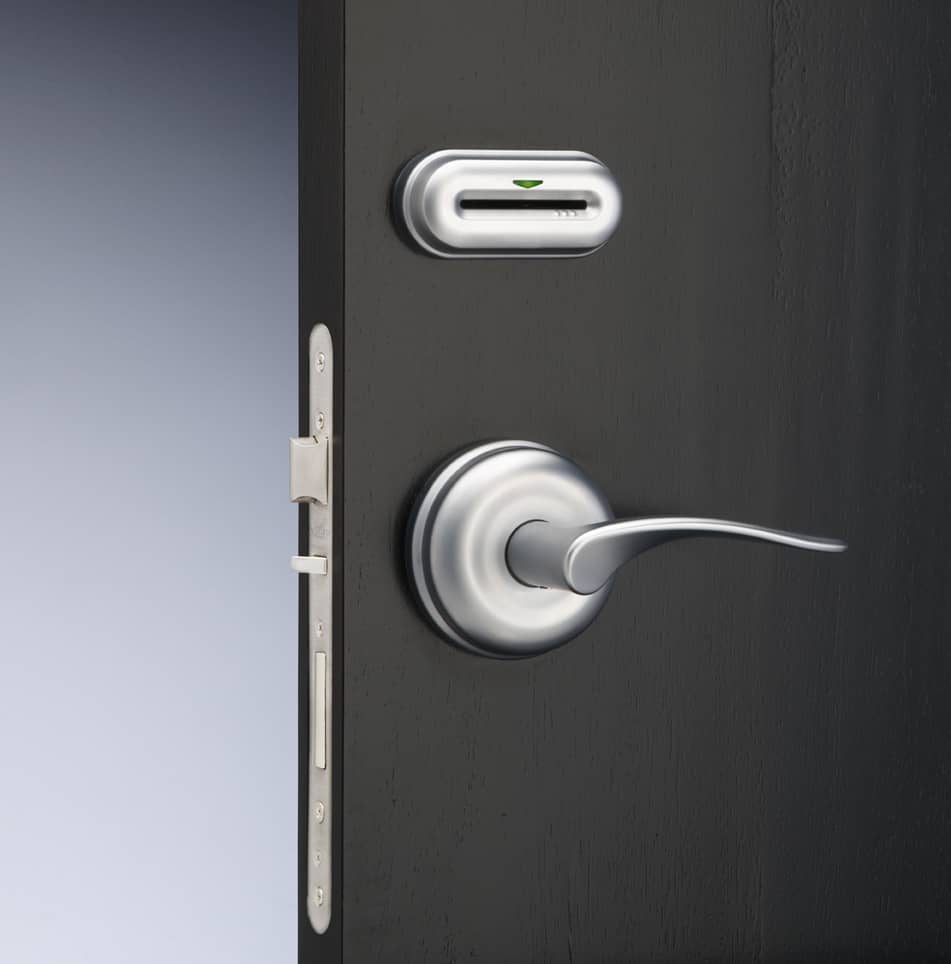

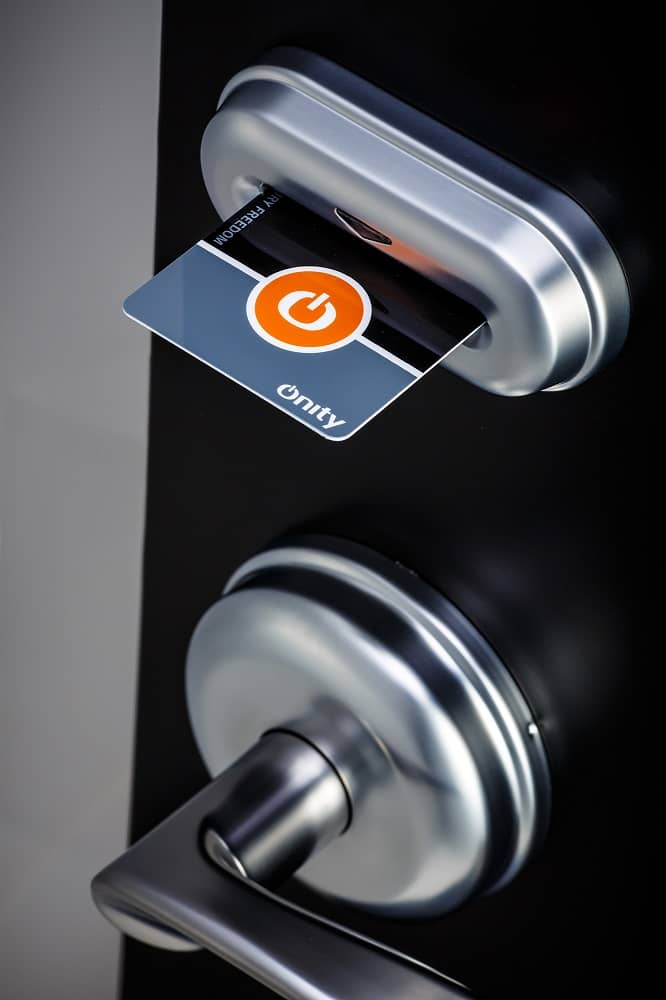

Advance Mag
Trillium Mag locks provide an easy upgrade path where Onity HT series locks currently are installed, no new door cuts or repainting are required.
Advance Mag
Electronic Features
- Non-volatile memory: records last 500 lock openings including date, time and card user
- Do-Not-Disturb” Function: Deadbolt operates by a thumbturn inside the room for added guest privacy and security
- Low battery indicator lights alert hotel staff without disturbing guests
- Programmable to customer needs (“Office Mode”, free passage, etc.)
- Uses standard ISO/ABA mag-stripe cards
- Lock ensures accuracy by reading the mag-stripe card twice; once during insertion and once during removal
- Each new guest card overrides any previous ones preventing re-entry
- Masterkeying available
- Capability to manage staff shifts

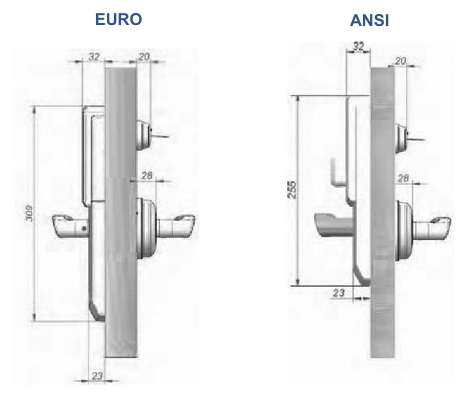

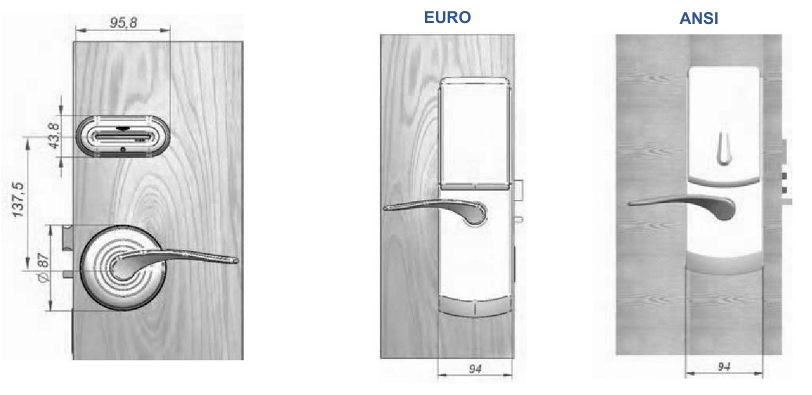

Dimensions
Physical Features
| Operational temperature | -25°C to +65°C |
|---|---|
| Power supply | 4 alkaline AA batteries (included), with 4 years life approx |
| Handles | Wing, Toledo, Granada, Barcelona, Jerez, Sevilla |
| Cover Plates | Attractive cover plates are available for retrofit projects (customized cover plates can also be developed upon request) |
| Off-line installation (no wires required) | |
| Concealed screw design | |
| Corrosion-resistant case | |
Polished Brass

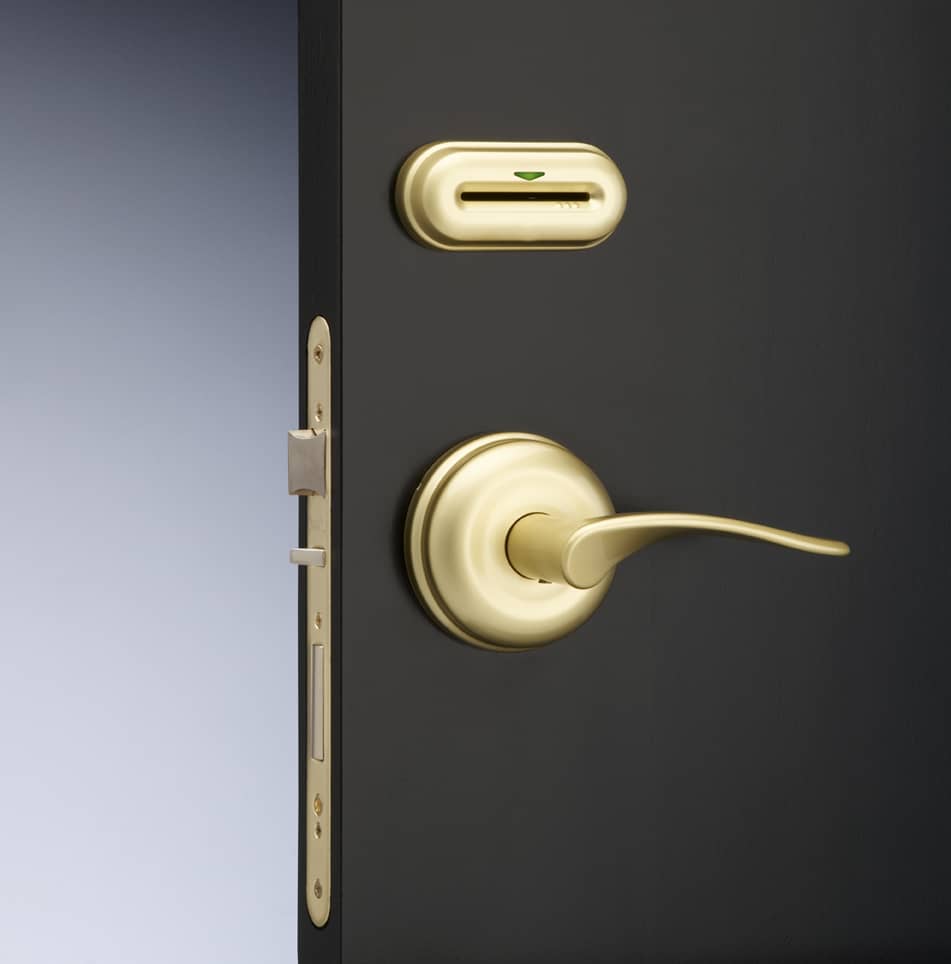

Satin Brass
Satin Nickel
Additional finishes
Antique Brass
Polished Chrome
Black Chrome

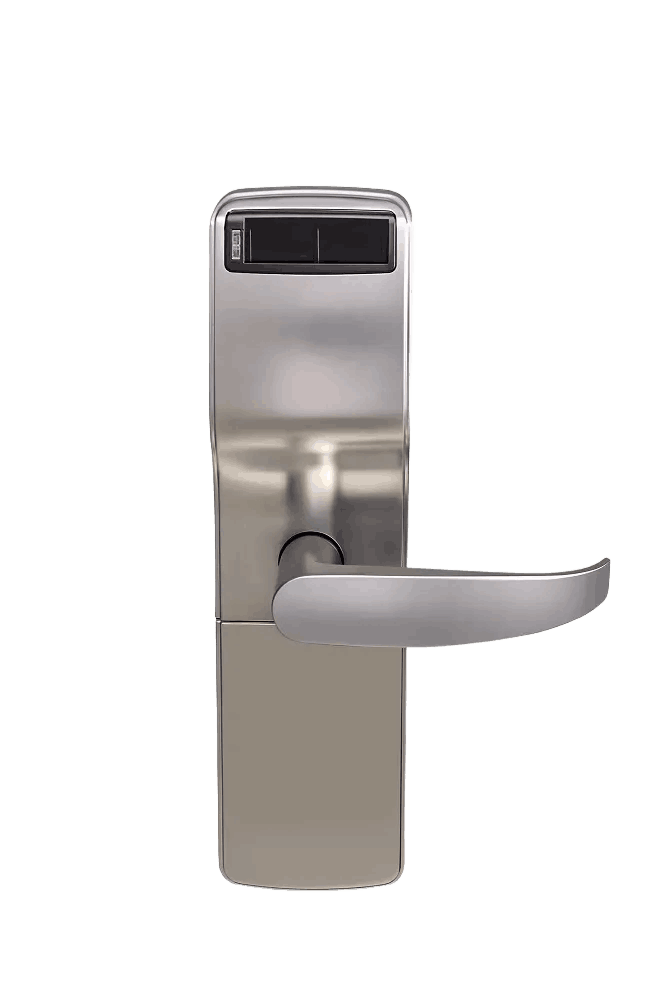

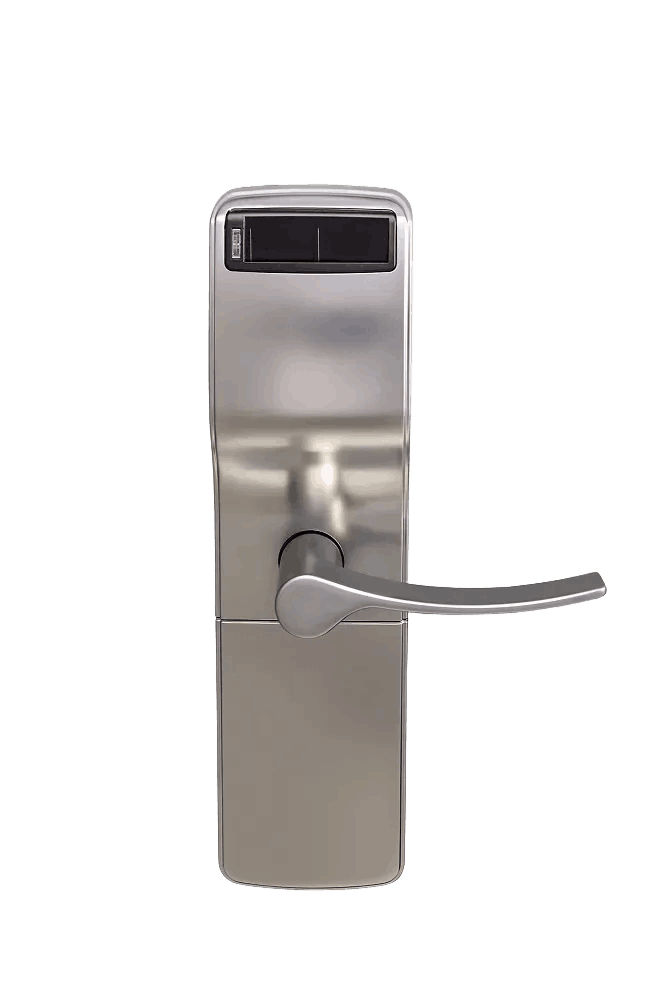

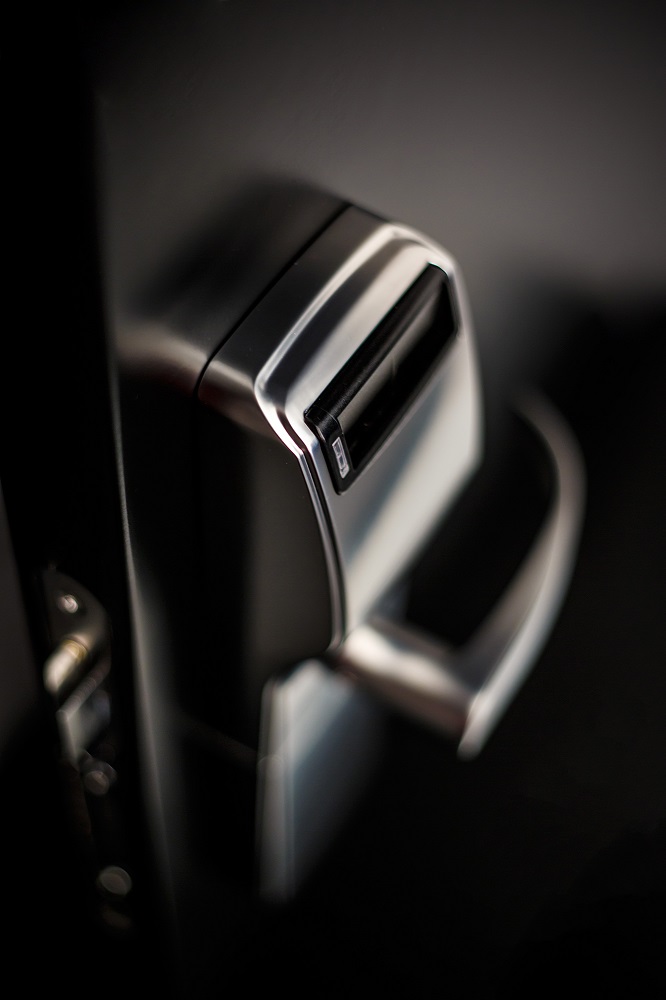

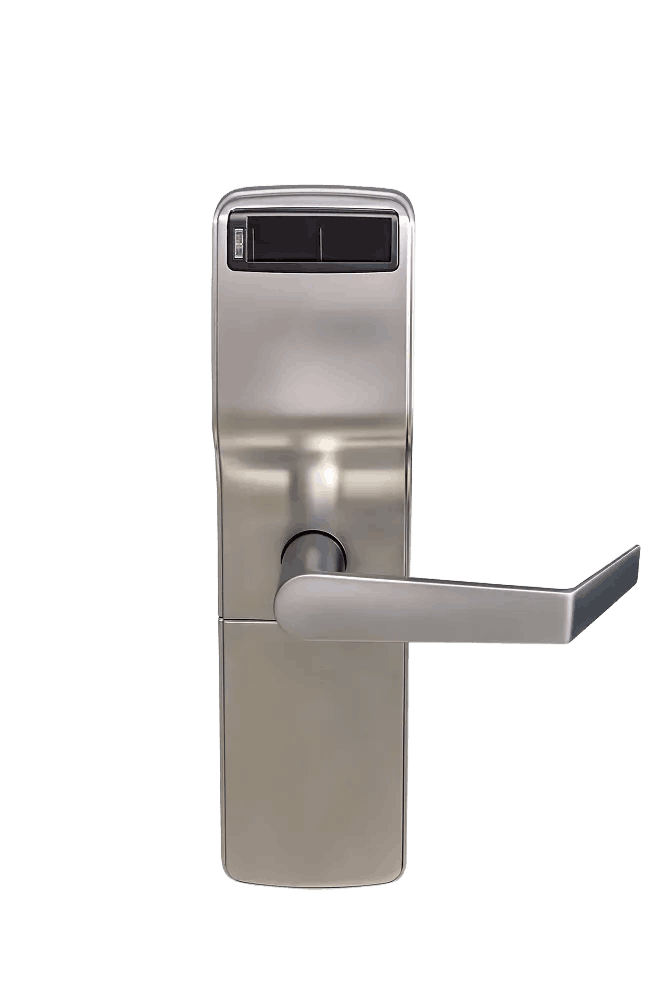

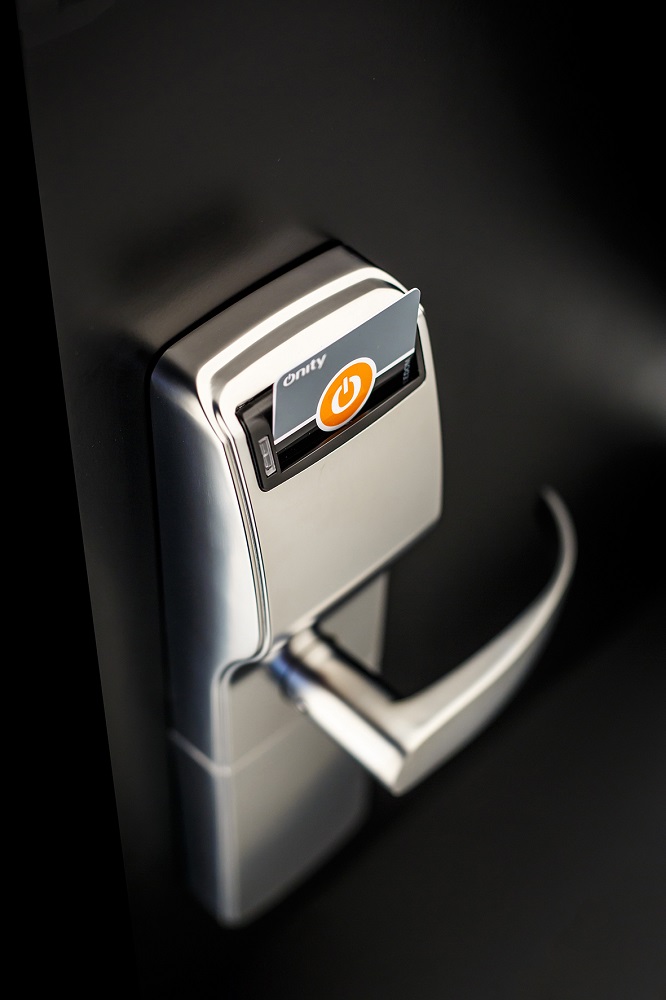

Trillium™ Mag
Trillium Mag locks provide an easy upgrade path where Onity HT series locks currently are installed, no new door cuts or repainting are required.
Trillium™ Mag
Electronic Features
- Compatible with Onity OnPortal™, HT22 and HT24W electronic locking systems
- Uses standard ISO/ABA mag-stripe cards
- Lock ensures accuracy by reading the card twice, once during insertion and once during removal
- Non-volatile memory: records last 500 openings including date, time and card user
- Masterkeying available
- DirectKey-ready: Bluetooth® module can be shipped on-board or added later
- Programmable to customer needs (“Office Mode”, free passage, etc.)
- LEDs indicate lock status including low battery
- Programmable for length of time door remains open and automatic closing
- Each new guest card overrides any previous ones preventing re-entry
- Capability to manage staff shifts
Specifications
| Exterior size | 292 x 79 x 45 mm |
|---|---|
| Temperature ranges | |
| Alkaline batteries | -18ºC to 55ºC |
| Lithium batteries | -40ºC to 75ºC |
| Humidity | up to 95% non-condensing |
| Power supply | 4 alkaline AA batteries(included), with 2 years life approx. |
Physical Features
Barcelona

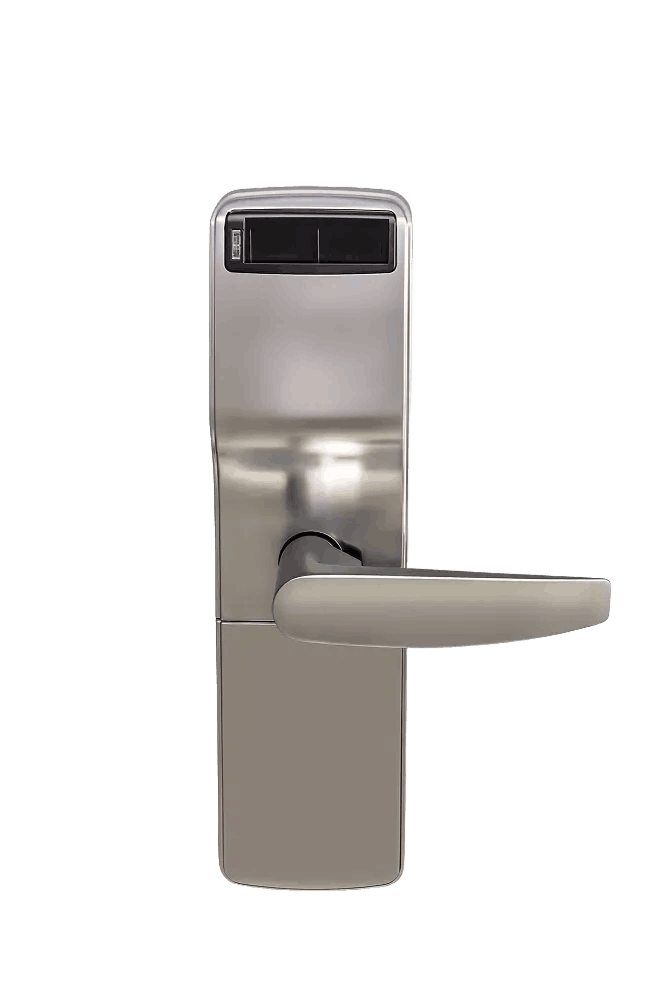

Jerez

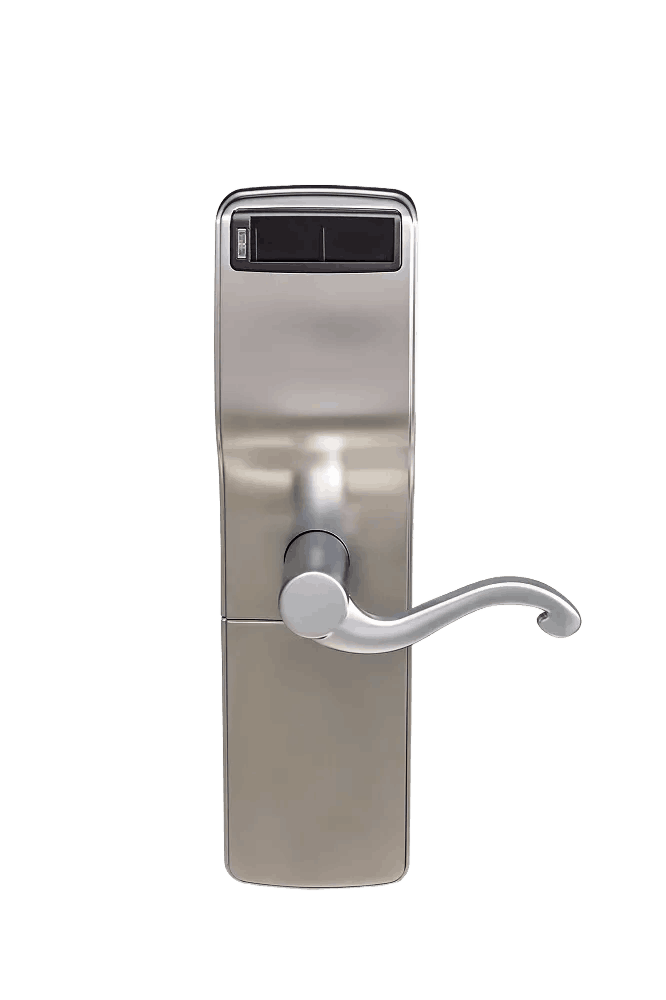

Sevilla
Toledo

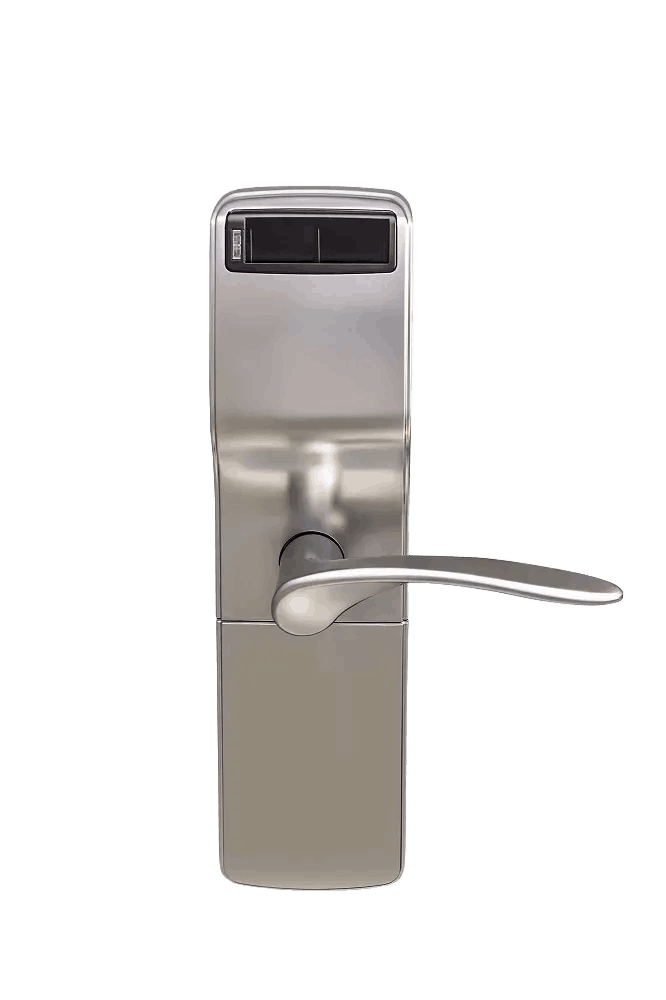

Wing
Granada
Additional finishes
Antique Brass
Black Chrome
Polished Brass
Polished Chrome
Satin Chrome

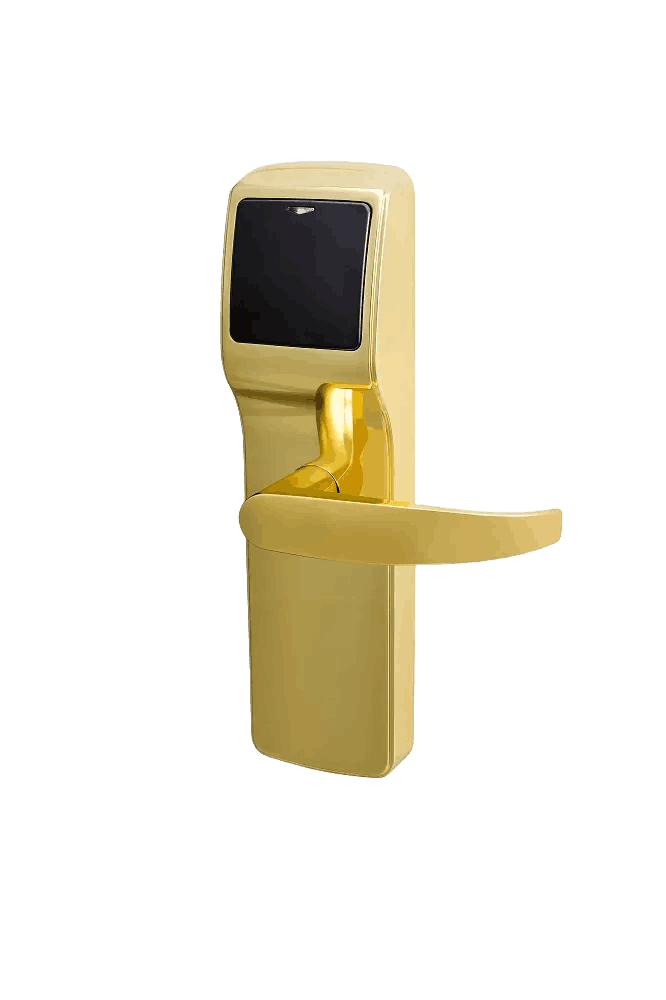

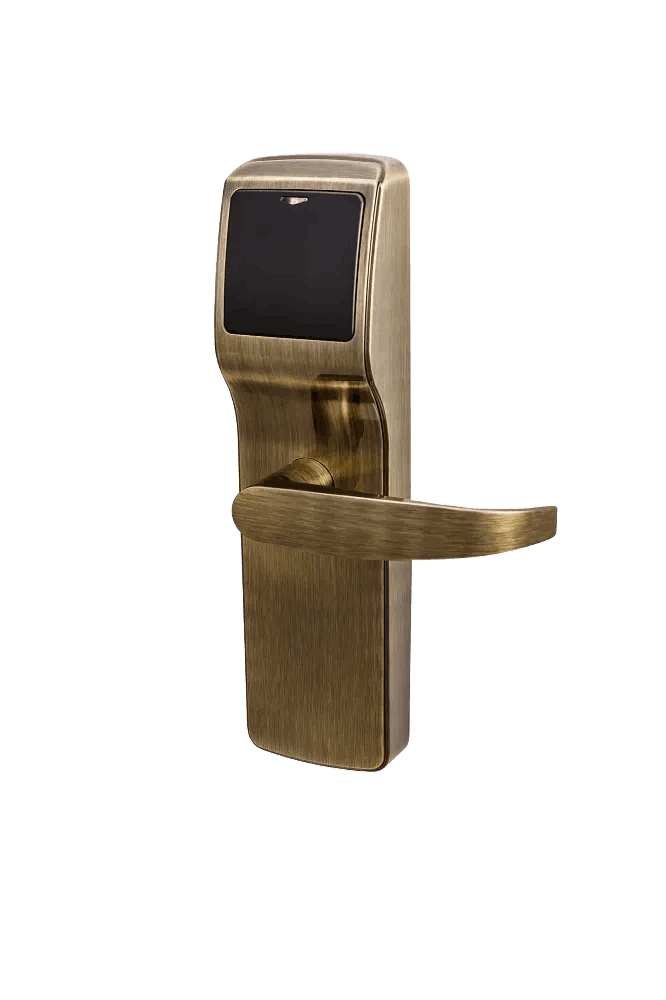

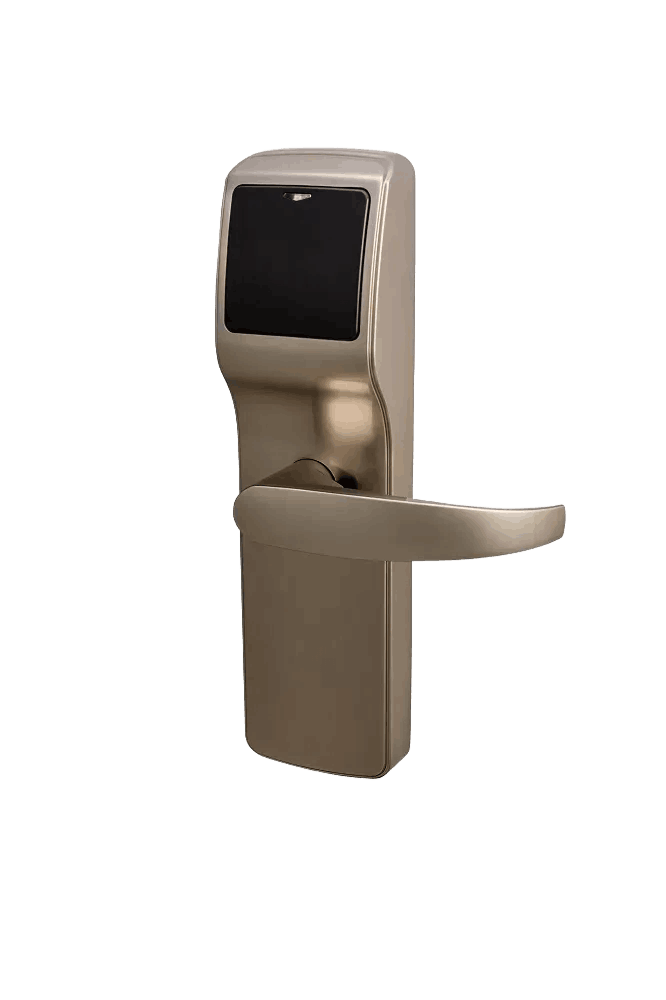

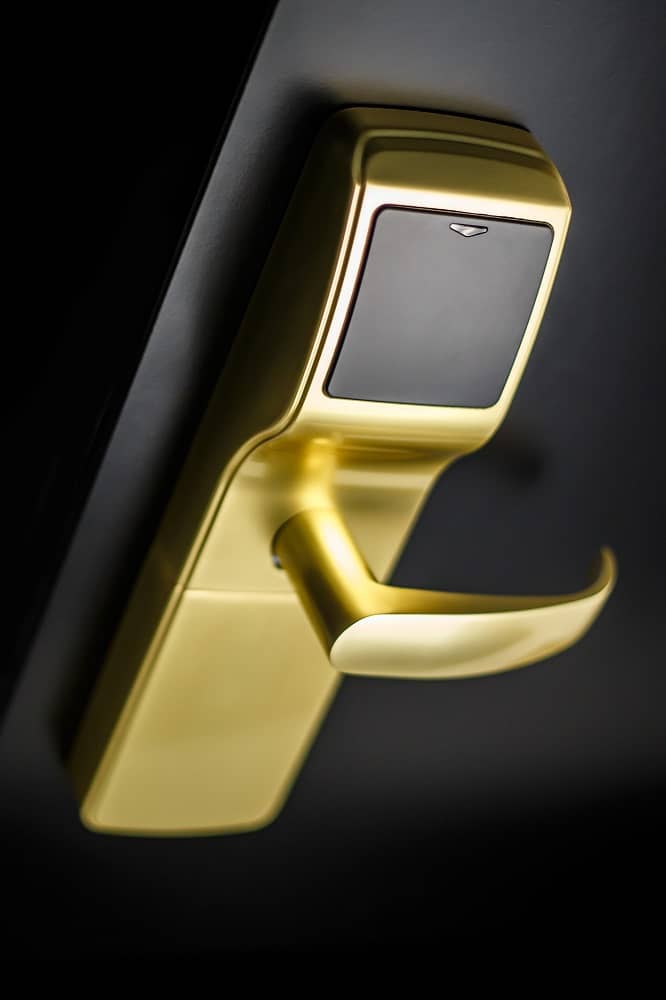

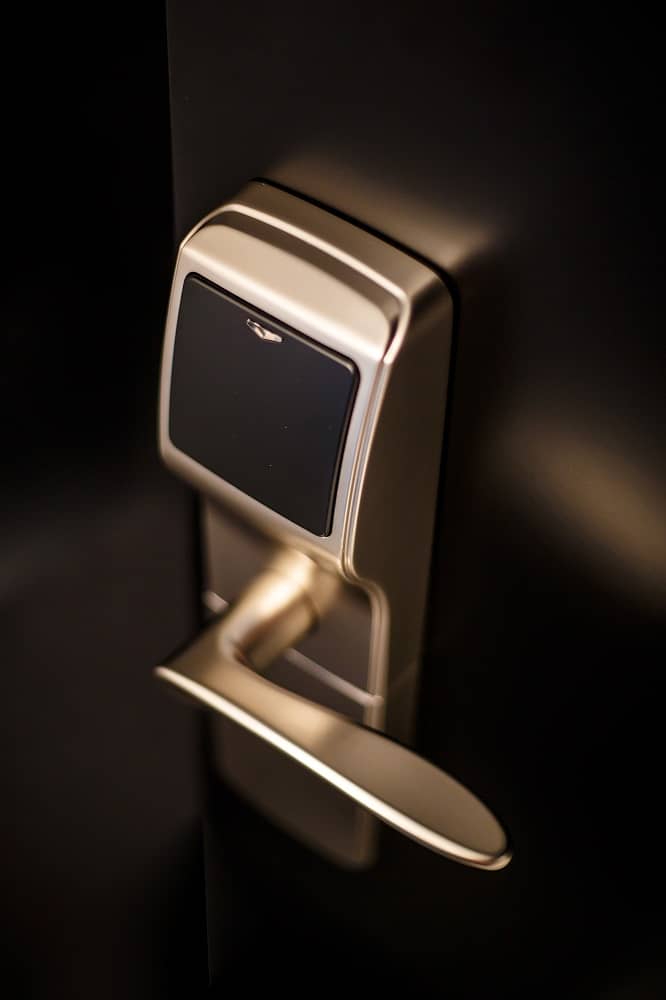

Trillium™ RFID
Trillium RFID locks include the option to use MIFARE® Plus Technology with enhanced credential security for RFID cards. Trillium locks are available with a DirectKey™ module option, enabling a proven mobile key solution.
Trillium™ RFID
Electronic Features
- Compatible with Onity OnPortal™, HT22 and HT24W electronic locking systems
- Reading technology: contactless RFID (ISO14443A, 14443B part 4, NFC)
- Supports MIFARE Classic/EV1, MIFARE Plus, MIFARE Ultralight and MIFARE Ultralight C cards

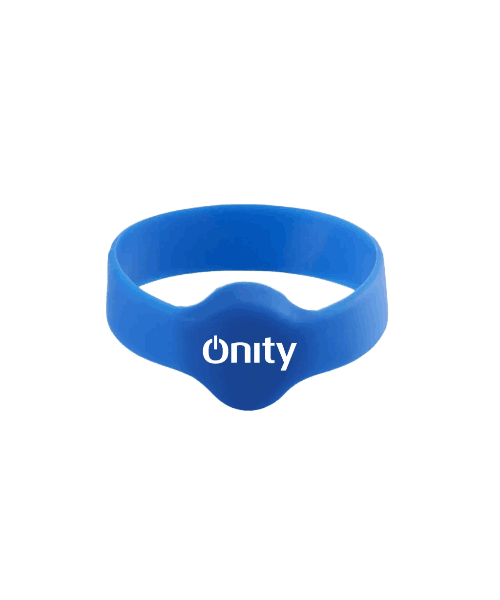

- Multiple opening devices available: cards, wristbands, keychains, etc.
- Non-volatile memory: records last 500 openings including date, time and card user
- DirectKey-ready: Bluetooth® module can be shipped on-board or added later
- Programmable to customer needs (“Office Mode”, free passage, etc.)
- LEDs indicate lock status including low battery
- Programmable for length of time door remains open and automatic closing
- Each new guest card overrides any previous ones preventing re-entry
- Masterkeying available
- Capability to manage staff shifts
Specifications
| Exterior size | 292 x 79 x 45 mm |
|---|---|
| Temperature ranges | |
| Alkaline batteries | -18ºC to 55ºC |
| Lithium batteries | -40ºC to 75ºC |
| Humidity | up to 95% non-condensing |
| Power supply | 4 alkaline AA batteries(included), with 2 years life approx. |
Physical Features
| Off-line installation (no wires required) | |
| “Do-Not-Disturb” Function (thumbturn) | |
| Corrosion-resistant case | |
| Special version for outdoors (Satin Chrome, Dark Bronze or Matt Black finish) | |
| Attractive cover plates are available for retrofit projects | |
| Standard Handles | Wing, Toledo, Granada, Barcelona, Jerez, Sevilla |
|---|---|
| Special Handles | Amsterdam, Bonn, Dallas, Trondheim and Paris (compatible with EURO mortise) |
Antique Brass

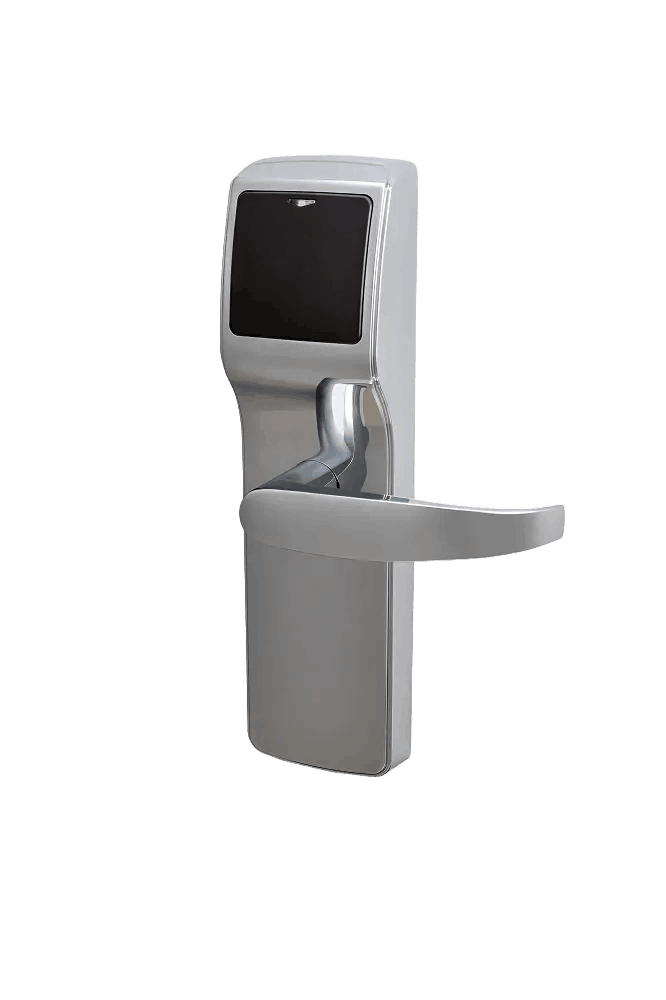

Polished Chrome
Satin Nickel
Polished Brass

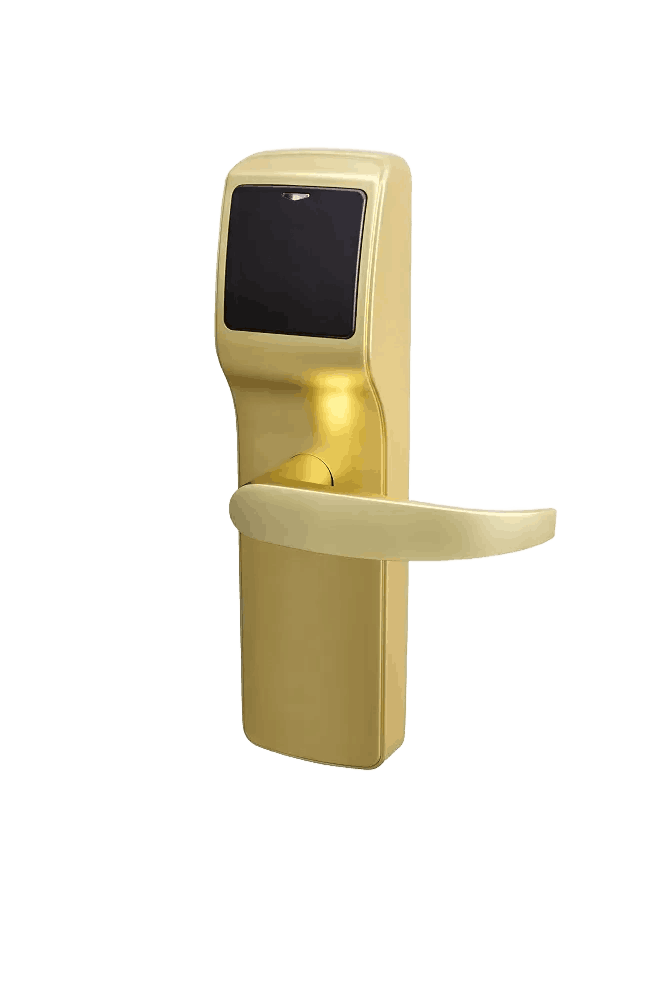

Satin Brass

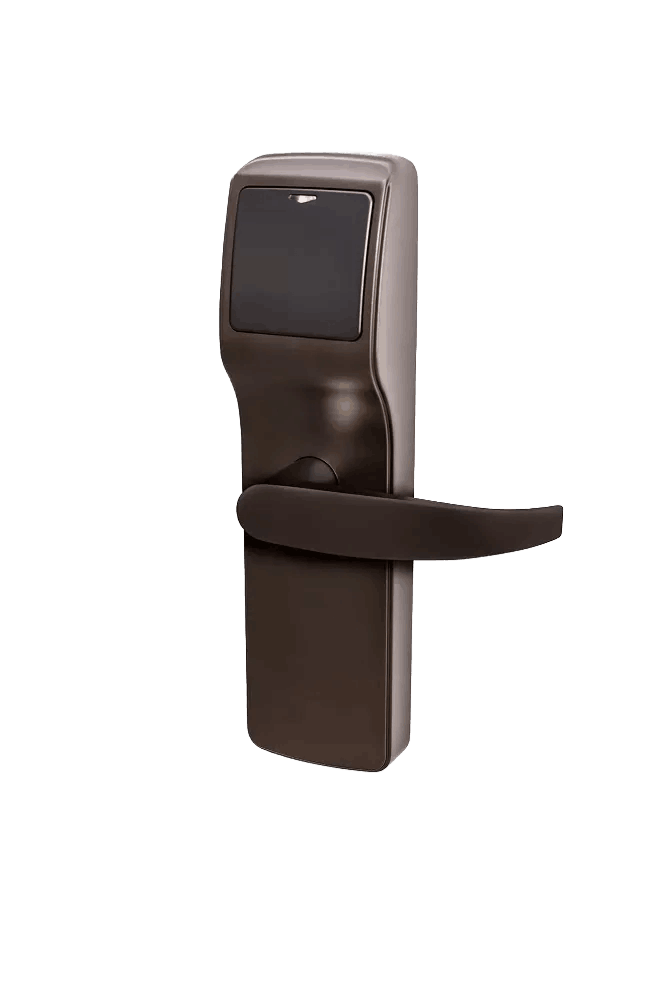

Dark Bronze
Solution for every door

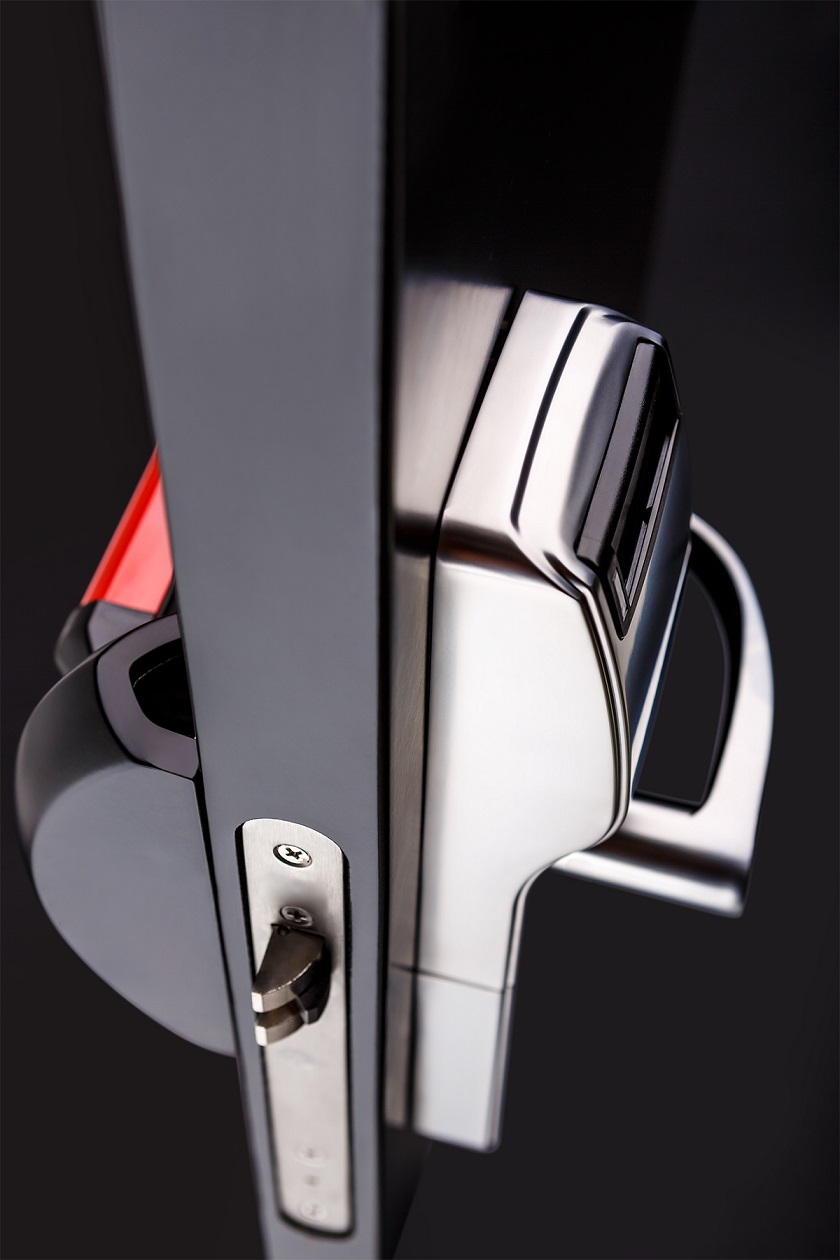

Electronic Lock with Panic Bar
Onity electronic locks can be combined with a panic bar solution at emergency exits, for higher security and control. Manufactured in high quality materials and using simple mechanisms, they guarantee efficiency and long life.

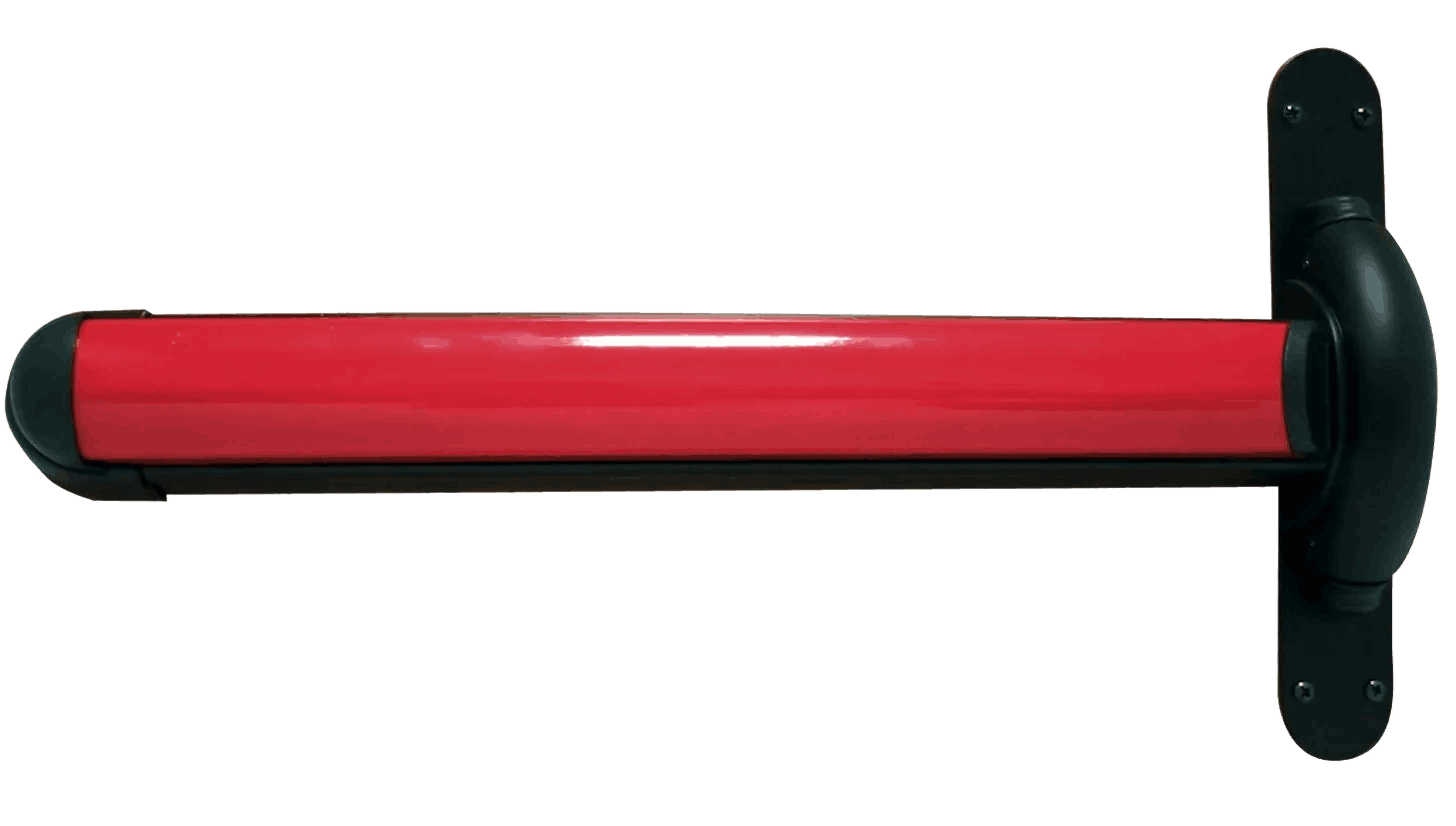

Panic Bar Solution
Features
- Manufactured in high quality materials and simple mechanisms to guarantee efficiency and long life
- Internal components in galvanised steel, adaptable to fire doors
- For wood, metal and aluminium doors
- Easy and quick installation
- Design suitable for all types of ambiences
- Non handed
| Operation from inside | Pressing the bar |
|---|---|
| Operation from outside | Electronic—mechanical lock |
| Bar length options | 840 or 1200 mm (can be cut to min. 300 mm) |
| Maximum door dimensions (H x W) | |
| 2.5 m | 1.3 m |
| Thickness | |
| With MG5 mechanical lock | With HT electronic lock |
| 65 mm | 73 mm |

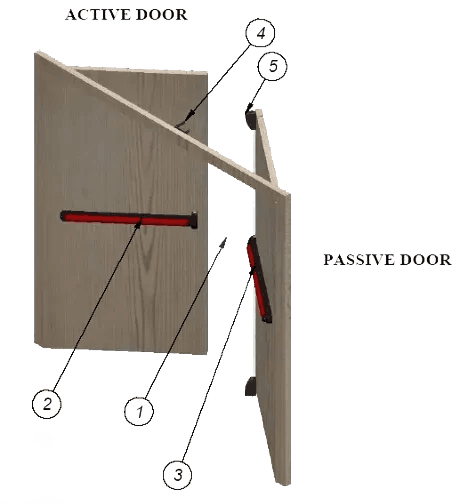

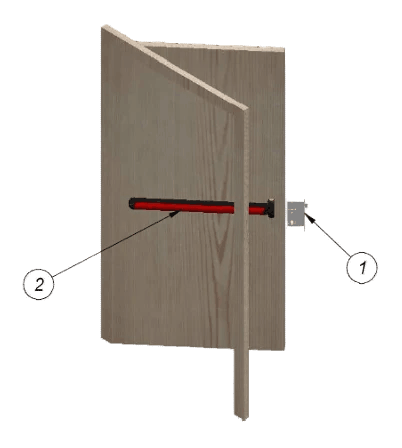

Single & Double Door Configuration
| 1 | Panic bar for active door |
|---|---|
| 2 | Mortise lock |
| 1 | Mortise lock |
|---|---|
| 2 | Panic bar for active door |
| 3 | Panic bar for passive door |
| 4 | Closing selector |
| 5 | Pair of fixing strikers and cable |

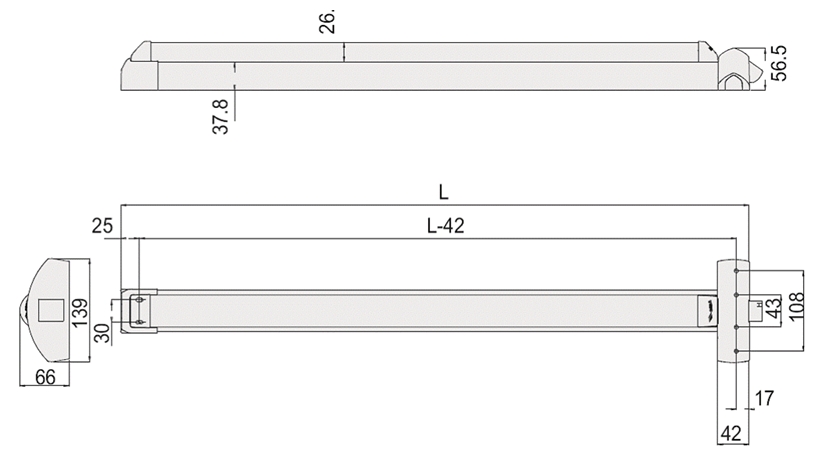

Dimensions

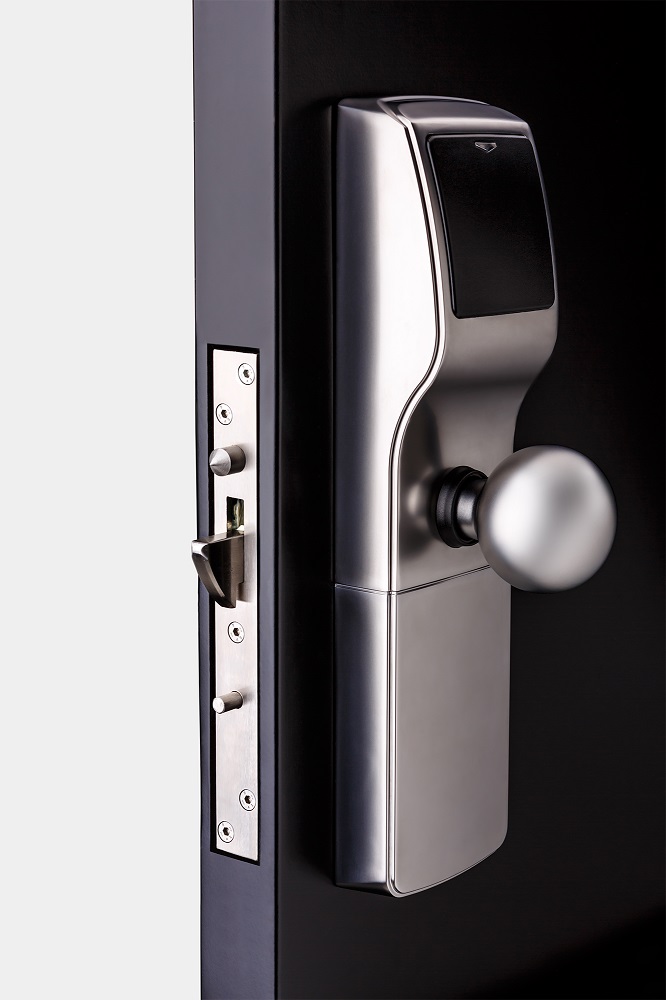

Sliding Door Lock
Onity electronic locks are suitable for installation on sliding doors, using a specially designed mortise lock. This solution is applicable to Trillium Mag and Trillium RFID series locks.

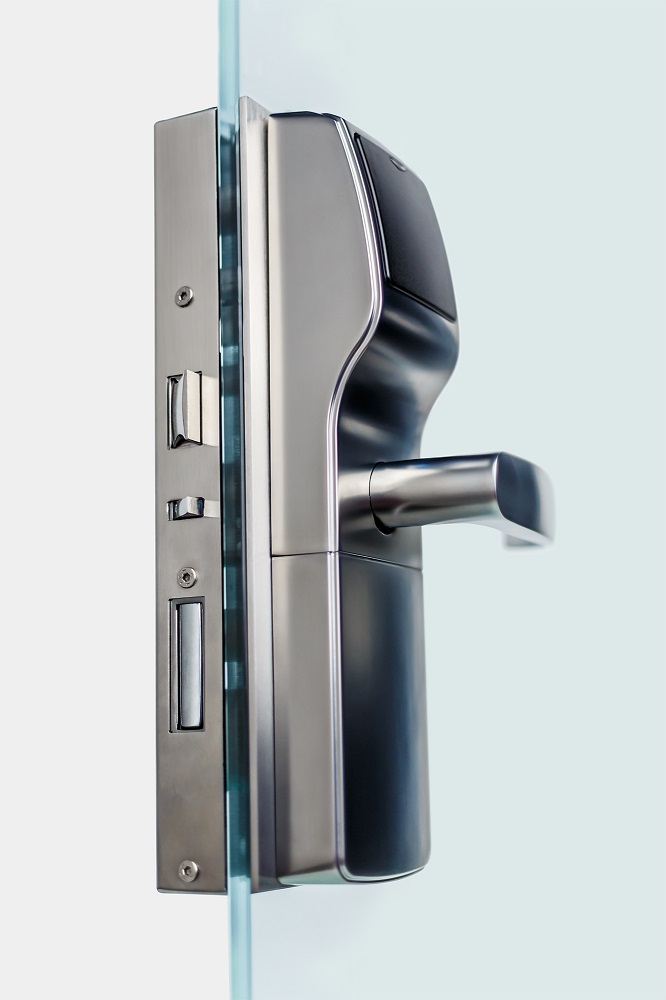

Glass Door Lock
The Onity glass door solution is ideal for main entrance, office, meeting or passage doors, for virtually any type of property. It has been designed especially to fit the Onity Trillium series electronic lock range on glass doors, and it is also suitable for other types of doors with thickness under 25 mm (metallic, hard wood, lockers, etc.)

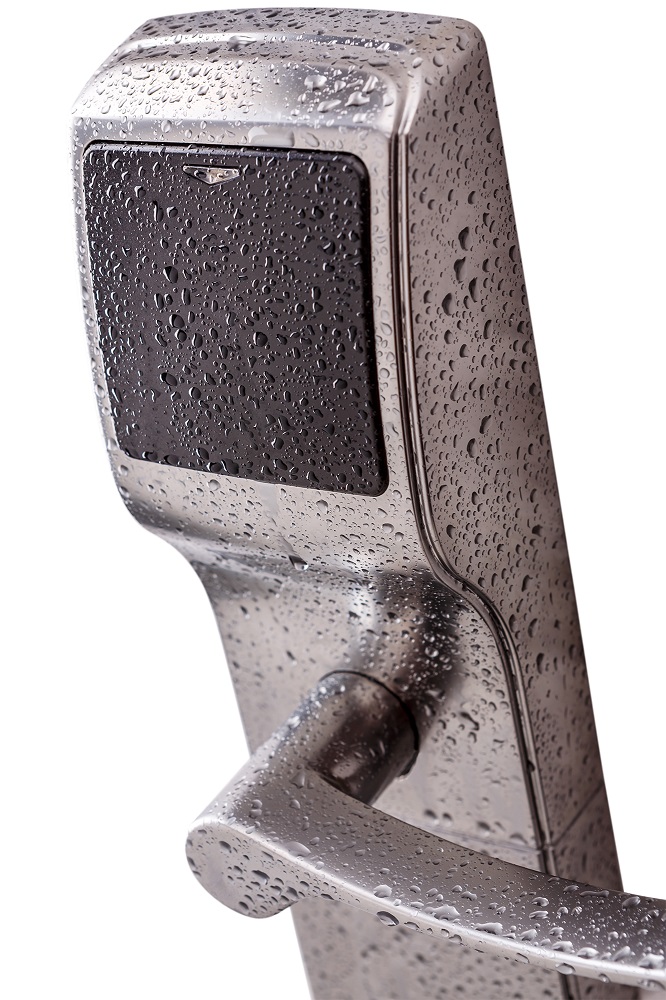

Outdoors Locks
Onity locks are available in a special version for outdoors, designed to withstand rough weather environments. This solution is offered for Trillium Mag and Trillium RFID locks in satin chrome and dark bronze finishes, combined with the full range of Onity handles.
Credentials

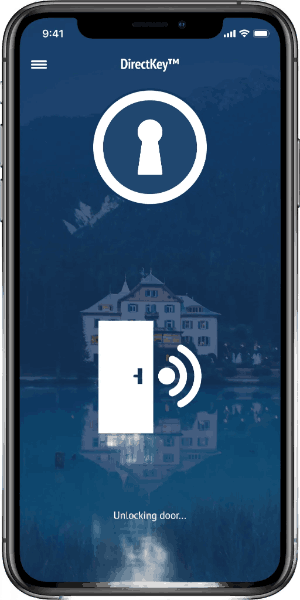

Direct key

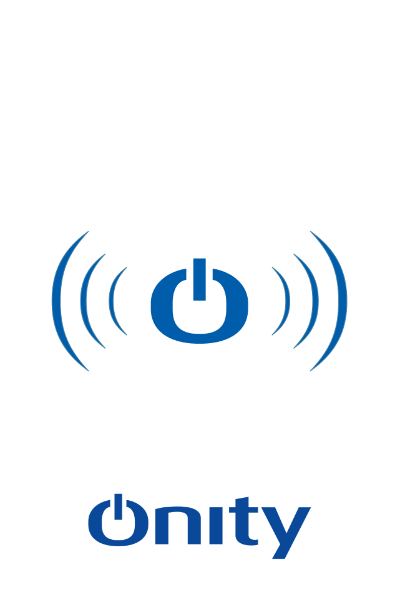

RFID card

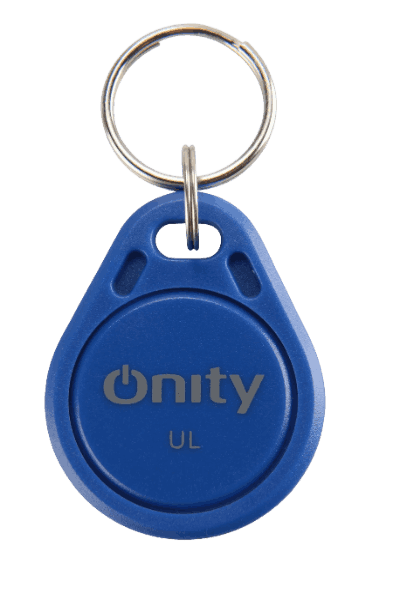

Keyfob

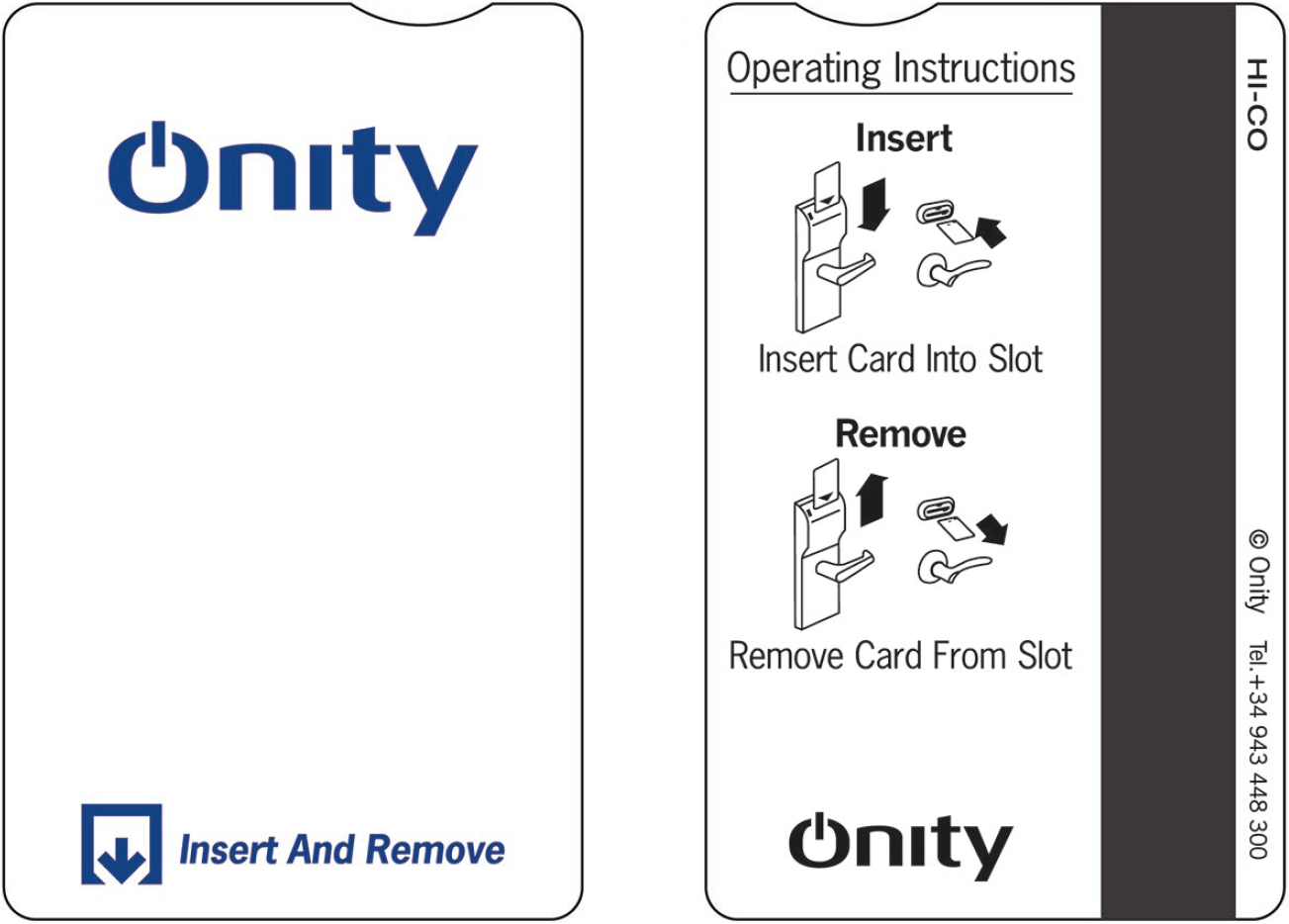

Magstripe
